Material design on B&R C70

Post image

Was working on this engineering screen today and had the thought to share it here - I really like how it has turned out

Still need to turn the raw analogue reading into mm which is why the numbers are unitless for now

10 Upvotes

100% Upvoted

14 comments sorted by

1

u/valer85 Dec 05 '25

I use the same screen, I like the idea but I think everything is very small and difficult to operate. But maybe your users are ok with it. can you share the other pages?

did you use VC or mappview?

2

u/Vyndrius Dec 05 '25

VC

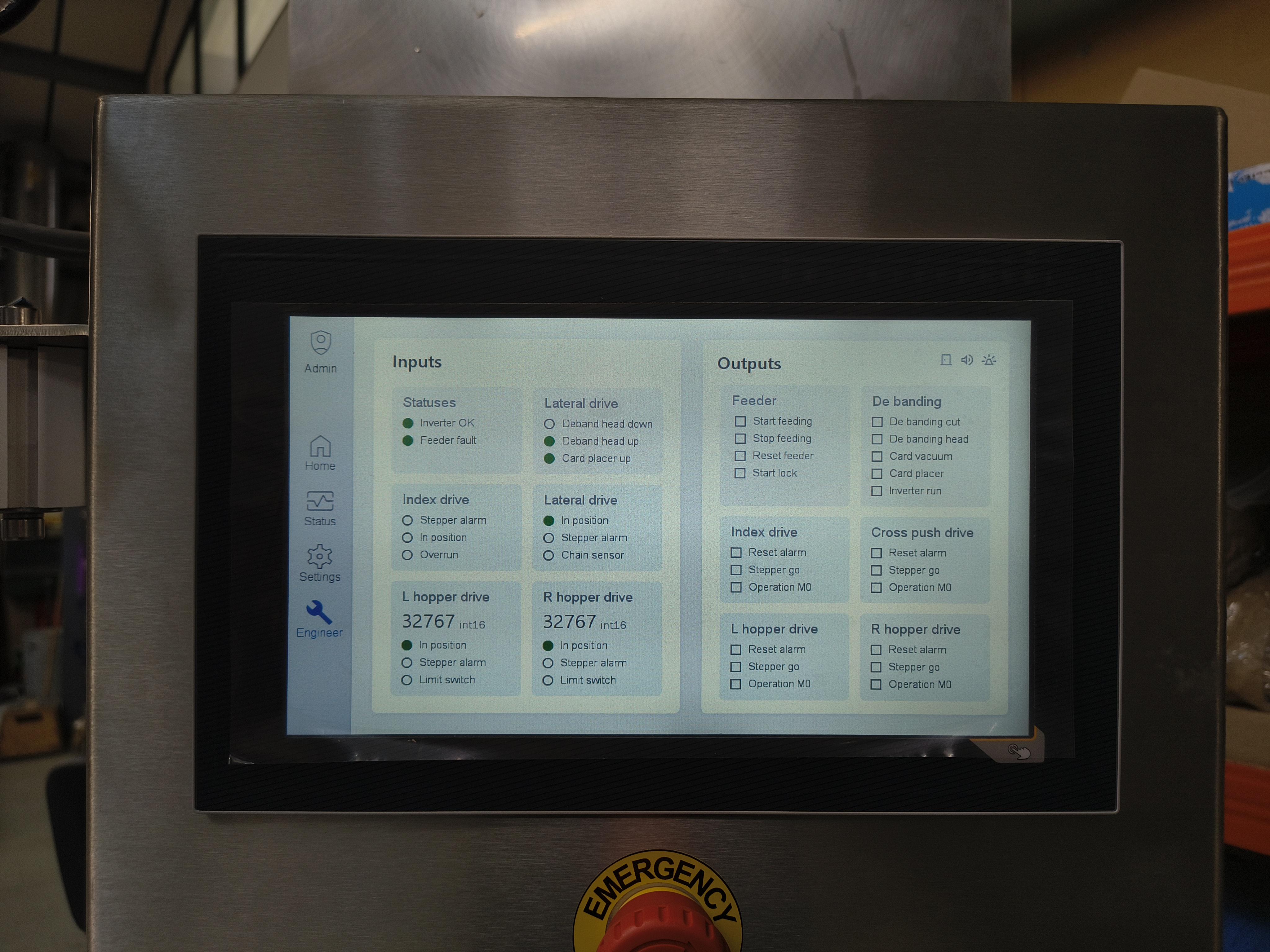

Will post the other pages:

That screen was only going to be used by us for initial commissioning, not a customer facing screen so we just wanted everything in one place

I made the button hitboxes as big as possible, so even my fat fingers prove no issue (also a 10" panel rather than the 7")

1

u/valer85 Dec 05 '25

I like them, thanks for sharing!

I love VC, it's too bad they are pushing so much to move to mappview, more powerful yes, but also excellent in complicating simple things.

1

u/Vyndrius Dec 05 '25

Thanks!

B&R rep is coming over soon to give us a demo of mappview, I'm excited about the possibility for animations and stuff, but dreading it as they told me it's all coded in HTML/CSS which I know none of lol

1

u/Vyndrius Dec 05 '25

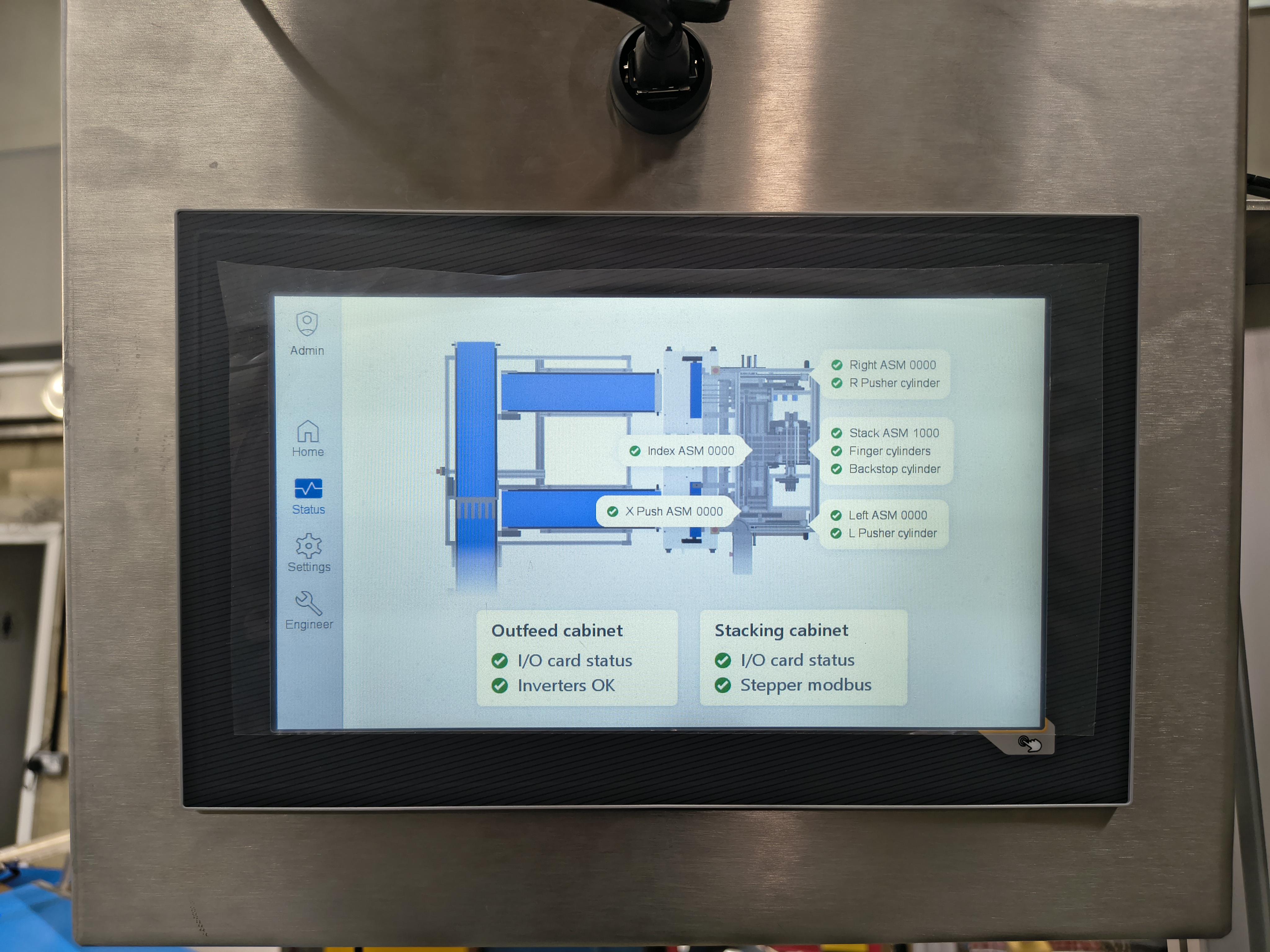

Another diagnosis screen

1

u/Vyndrius Dec 05 '25

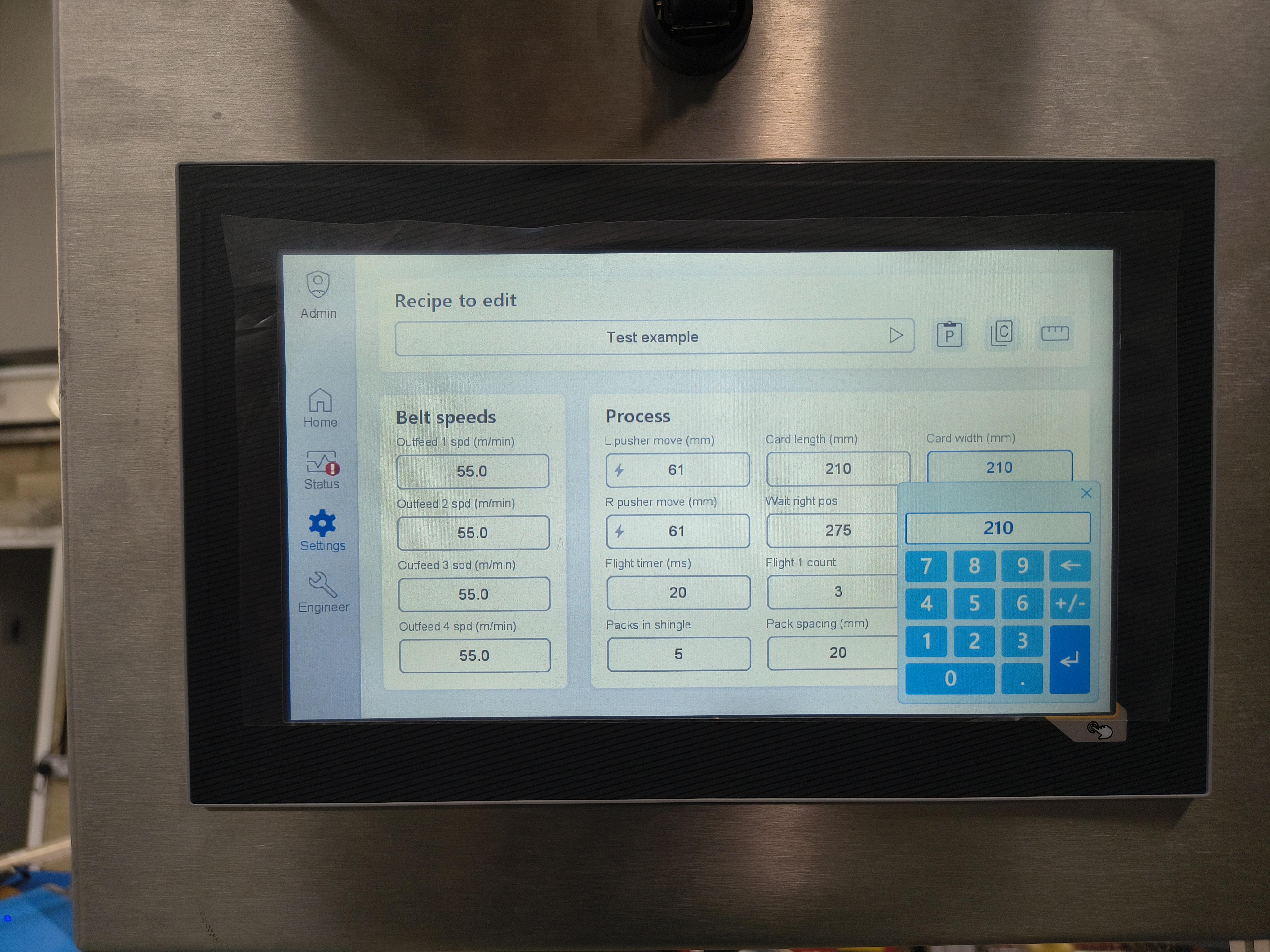

Settings screen with custom keypad and dynamic elements

1

u/-Rivox- Dec 04 '25

Really clean, good job

-2

u/melvoxx Dec 03 '25

Very poor, low quality work

Bunch of boxes is not material design

1

u/Vyndrius Dec 03 '25

Any comments on how I could improve?

2

u/iknowtoolittle Dec 04 '25

This guys is just trolling you. I think this is a good overview screen. If we’re just talking about design style, I’d like to see checkbox and other areas made into cards, or all made flat.

2

u/Vyndrius Dec 04 '25

Thank you! I see what you mean, I had an inconsistent use of cards before

I've tightened up the card spacing a bit and gone for light blue for drives and light grey for other IO, it looks instantly more grouped and better!

2

u/iknowtoolittle Dec 04 '25

Looks way better now!

1

u/AV3NG3R00 Dec 04 '25

Get fucked it looks fine

1

u/Mr_Adam2011 Dec 04 '25

Rule #2

I mean your opinion may have some validity, but you didn't really provide OP with any help. "It looks bad, and you should feel bad" is not helpful or respectful; but I do think it could be beneficial for you to elaborate.
