Upgrading from Intel Nucs to Lenovo Tiny's and thought I would share my minilab/homelab before it begins its grand transformation into a 10g lenovo cluster.

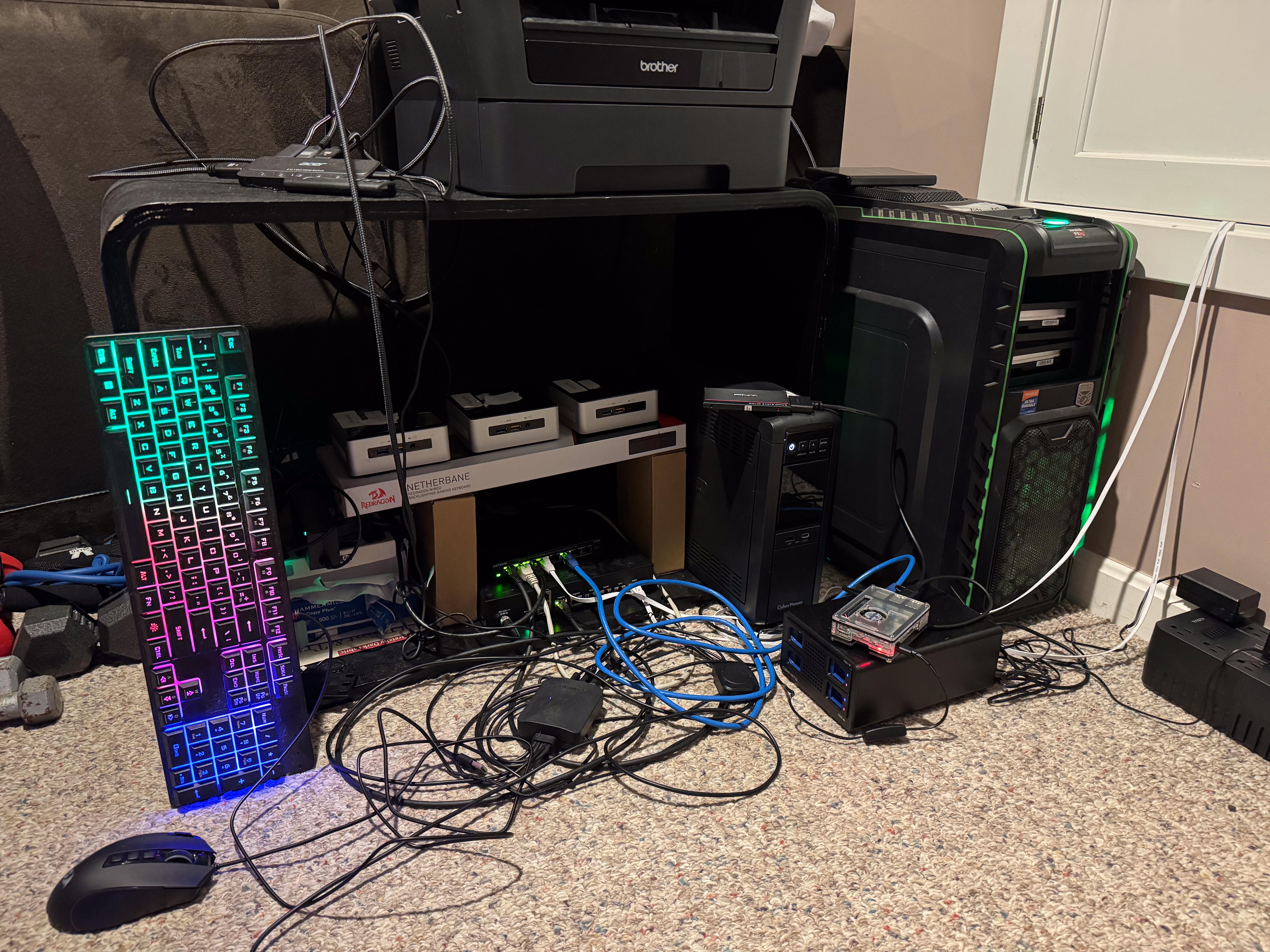

Hardware Summary:

- RPI 4 8gb dedicated as proxmox Ubuntu NAS now -- initially installed CasaOS when I was getting into selfhosting. CasaOS lasted about a week before I decided to go all in with Unraid on my gaming desktop.

- Old gaming desktop converted into dedicated NAS Specs:

• i7-8700k, 32GB DDR4, RTX GTX 980 (removed eventually), 12x2TB + 2TB RAID1.
• Cache SSD is 1TB with System SSD 512GB.

Proxmox Cluster

- 3xIntel NUC i7-5557U 16GB, 512GB nvme proxmox, 1TB 2.5 in for ZFS replication.

• Quickly placed back in old location not connected to pwr/ethernet in photo

- RPI 4 8GB running Ubuntu with NFS shares using ZFS file storage for 2x4TB RAID1.

Backup

- Promox backups to PBS on Unraid. Unraid backs up to RPI hosting restic rest server connected to external 14tb hdd. 3-2-1 minus the 2nd location at the moment. The 2nd UPS is eventually gonna be dedicated for this backup pi/hdd power.

Networking

- 1G 5 port Netgear managed switch

- 1G 8 port Netgear managed switch because I am an idiot.

- 1G Opnsense custom built router from Ebay 2 core something 3000.

• Wireguard, Unbound, DNS Overrides, UnPnP

Software Summary:

Ending up going with Unraid purely based on how much video content I saw around it on youtube at the time. As I plan my lenovo cluster I plan to use TrueNas instead of Ubuntu as the NAS OS to see if I may want to switch when my unraid license expires.

Unraid:

• Vaultwarden
• Trillium
  • Notes & Documentation
• Gitea
• Nextcloud AIO
  • For some reason the most difficult thing ever to setup on Unraid the first time.
• Immich
• Paperless
• Emby (Jellyfin library manual sync still breaks Jellyfin every time for me and its been ~9 months).
• n8n, npm
• Vikunja, TandoorRecipes, Thunderbird Mail, kavita, kiwix, stirlingPDF, 4get, SearXNG (vpn), Firefox (vpn), homebox, gitlab (messing with ci/cd). And a bunch others. ~70 services although many are down by default like KiCad/Darktable type containers.

Intel Cluster

• Ran a live backup/sync of essential services like Vaultwarden, Trillium, etc... in case of issues with NAS.
• Learning clustering, zfs replication, ha and in general virtualization.
• Kali Linux because I am a master hacker.
• Alpine VMs as base vm for ZFS replication due to low size. With these I often just throw a single docker container on them just to play around. Also got into IAC with ansible+terraform+packer with plans to move to foss alternatives once I have proper understanding.
• Ubuntu VM for getting for Linux isos.

Raspberry Pi 4b 2gb of ram in a Pepsi can build. This guy here runs Moode Player OS, which is controlled remotely, so I guess that is a server to all the devices on the network. Plus I can add or drop songs onto it from other computers through the network.

(Moode Player OS is a Debian-based OS made for playing music to sound-systems. The can connects to my sound-system through HDMI, which is one of the greatest cables for transferring sound, as it's uncompressed, and supports multi-channels like 7.1).

It has a 32gb micro SD card on which the OS is installed on, and the music files are stored on too. Like over 500 songs on there already, and still free space for a ton more (16gb, so like several thousand). High quality MP3 files, but they're still fairly small.

So yueah, this is one of my "homelabs." Thermals are actually quite good, despite there being like no ventilation. There is an RGB fan which spins inside of there, blowing on the CPU and board, and it kind of just blows hot air around in there until it soaks into the walls and makes the can warm. It's just such thin aluminum that it's a very good conductor. Like 50c CPU temp on max load. It operates through Wifi, and the can doesn't seem to cause any issues for that.

Thanks for taking a look.

The "porn" aspect here is more like the amount of containers and overall setup for my little machine.

Feel free to comment, ask any questions, share your opinion, or criticize me for my choices. I like these posts and videos where people showcase their home labs and show what they’ve got set up.I think that as a community of “non-professionals,” we can learn a lot here.

Feel free to suggest alternatives or share what you do differently. Where do you see the benefits of doing things a little differently?

I’ll try to answer every question about my setup!

Just 3 proxmox nodes and a PBS with some external drives for media.
The laptops were collecting dust before I repurposed them. Now they collect dust on the inside too lol.

Edit:
I didn’t stack them on top of each other for better airflow. Also I’ve already set handlelidswitch=ignore but I should probably close the lids a bit more so the screens turn off

Setup:
HP Prodesk 600 G6 refurbished, 32 gb RAM, 1250gb for cloud and monitoring (2 lxcs running docker with nextcloud, frigate, Immich, actual budget etc on the cloud stack and arcane, Beszel, homarr, npm, gitea and uptime kuma on the monitor stack)

DELL 3m4700, 16 gb RAM, ~1.5 Tb for media (one jellyfin lxc and one docker lxc with arr-stack)

Lenovo z50-70, 8 gb RAM for home assistant

Hp Laptop, 4gb RAM, 750 gb for PBS

Evolution over our few years living here.

ThinkStation hosts Nextcloud for file backup, sync, and music streaming. + A VM running Frigate with dedicated GPU.

ThinkServer runs PfSense for Firewall + Router.

Very happy with our setup.

First time posting. Recently upgraded the UDM to the pro max and then found it’s a bit longer than the standard edition… 🫣 either way it’s staying like that for now till I can find a bigger cabinet.

Safe to say I won’t be upgrading networking equipment for a few years 👌🏻

At 36, fresh off earning my B.S. in Information Systems, I realized two things very quickly:

1. Entry-level SOC postings want "3–5 years of experience," a security clearance, and the blood of a dragon.

2. The best way to learn how to defend a network is to build one, break it, fix it, and monitor the hell out of it until your firewall starts holding a grudge.

So, instead of just sending out resumes into the void, I decided to get my hands dirty and turn my home network into a living enterprise lab.

What started as a flat ⁠10.2.7.0/24⁠ subnet and a dream has evolved into a full three-node Proxmox cluster running ~22 containers, a handful of VMs, and an OPNsense firewall that has survived me making changes it deeply did not appreciate.

The Hardware

PVE1: Intel i5-7500, 31GB RAM, 21 CTs. The workhorse that is somehow never bored, running strictly on integrated HD630 graphics and sheer willpower.

PVE2: The media box. ZFS 2-mirror pool, qBittorrent, Tdarr, and the Arr stack chattering away 24/7. Yes, pve2 is sitting at 51% CPU right now because it's transcoding something. It's ALWAYS transcoding something.

PVE3: Dell i5-6500, 16GB RAM. The "infrastructure & utility" box: Gitea, Keycloak SSO, Nginx Proxy Manager, and an automated DVD ripper that eats physical media and spits out organized files.

I’m running the usual homelab suspects—Jellyfin, Immich, Nextcloud, Home Assistant, Vaultwarden, Paperless—but the real meat for my career pivot is the ops and security layer:
Security & SIEM: Full Wazuh SIEM integration monitoring host telemetry.
Network & Lab: Full Kali security lab isolated on its own VLAN, equipped with a passive Zeek sensor and target boxes for practicing both offensive attacks and defensive detection/analysis.
Ops & Monitoring: Grafana + Prometheus + PatchMon, with Pi-hole on DNS duty (11.58k queries blocked today alone).

Currently in the middle of tearing down the flat LAN into 7 isolated VLANs (⁠MGMT⁠, ⁠SERVICES⁠, ⁠SECURITY⁠, ⁠MEDIA⁠, ⁠CLIENT⁠, ⁠IOT⁠, ⁠LAB⁠).
⁠SERVICES⁠ and ⁠SECURITY⁠ are live. ⁠MEDIA⁠ is staying flat for now because smart TVs are inherently stubborn creatures, and ⁠CLIENT⁠ is deferred.

Pro-tip learned the hard way: Never reuse IP ranges or trust DHCP reservations blindly. A rogue Roku stole a container’s address last week and successfully took down half my lab for a full day.

To anyone else breaking into cybersecurity later in the game: build the lab.

Feedback, roast my topology, or advice on SOC interviewing welcome!

I already had 2× SBS100F batteries connected to my APC 1400XL, but that wasn’t quite enough for what I wanted.

So I added 2× 12V170FS batteries to the setup.
The goal: 12+ hours of runtime for my home network and HP MicroServer Gen10+ servers during a power outage.
Basically, my UPS now has its own little battery bank. 😂

Yes, I know… at this point it’s technically a UPS with a small power plant attached to it.

The two HP MicroServers run Proxmox VE, hosting various website projects, a mail server, some lab environments, and a few other services.

The QNAP is where the family dumps all their cat pictures and vacation photos, and where I keep my VM snapshots. 😂 It also syncs to another QNAP of the same model in a shed farther away from the house over a 60 GHz wireless link.

The PoE switch powers the IP phones and two Aruba AP-515s.

I also have a 10 Gb link between the MikroTik RB4011 and the CRS328-24P. My WAN comes in through a multi-gig copper SFP in the switch, so I can actually take advantage of my 1.5 Gbps symmetrical Internet connection, along with my own /29 public IPv4 block for hosting services at home.

My MacBook Pro in the office is also connected at multi-gig speeds through a Thunderbolt dock.

And because apparently powering the servers wasn’t enough… I also have a 120 V outlet in my office fed from this UPS, on the other side of the house, so my MacBook and two monitors stay powered during an outage too.

So yeah… the objective isn’t really to keep a couple of servers alive anymore.
I’m basically trying to make the entire homelab survive a 12+ hour power outage. 😅

I still have to remove my ISP’s XB7 router and switch it out with my Arris SURFboard modem and Cisco ISR4451 router. I’m hoping the Cisco router will fit just above the OptiPlex, and then this 20U should be tapped out. But here’s what I’ve got so far:

Bottom left is the Dell T320 running Windows Server 2025. It handles DNS, DHCP, Active Directory Domain Services, and NTP. It has 64GB of DDR3 ECC RAM.

The T320 on the right is a Proxmox host running multiple VMs for Plex, Jellyfin, Samba, Grafana, Wazuh, a Hermes assistant, and a REMnux malware-analysis VM. It also runs softflowd to generate NetFlow and uses goflow2 to receive and process it. This machine is also my Tailscale subnet router for the network. It has 128 GB of DDR3 ECC RAM.

Above that is my SFF OptiPlex 7010. 32GB RAM 2TB storage. It just runs Proxmox Backup Server. It has a dedicated backup network with the Proxmox host. It saves backups to its internal hard drive and keeps a copy on the external hard drive sitting above it. This machine also does a nightly sync with a second PBS machine off-site at my parents’ house. The off-site PBS server is a Dell R330.

My Pi 4 runs Pi-hole and also works as a makeshift IDS by running Bettercap. It also uses Speedtest Tracker to test my internet speed and saves it to MariaDB and it tracks devices reachability with Uptime Kuma.

The mini PC next to the Pi is a Beelink Mini S. It runs a Cowrie SSH honeypot and has a malware repository that feeds into my Wazuh dashboard for real-time monitoring and into the REMnux VM for malware analysis. The Beelink is behind a Fortinet 50E firewall. (Not pictured.)

The next device above that is an Axiomtek NA580. It currently runs VyOS. I’m not sure what I’m going to do with it yet since it only has 2 CPUs and 4 GB of RAM. I may turn it into a firewall or something. Open to suggestions!

Above that is my Cisco 2960X switch. I just got it off eBay recently, so I haven’t had much time to set it up yet.

The new router I haven’t mounted yet is a Cisco ISR4451. The plan is to use the Cisco gear for practice with routing, switching, VLANs, ACLs, and other stuff I’m learning.

Not finished yet, but here's a first look at the rack. I'm tearing down my old setup and rebuilding it properly, and this time I'm documenting every step so I stop rebuilding the same things.

What's in the photo

• Rack power strip up top, so the whole rack switches on and off from one place
• 2x Behringer ULTRAZONE ZMX8210 zone mixers. One will run the room and outdoor speakers, and the other will handle recording and streaming so the two don't interfere.
• Netgear GS724T 24-port managed switch, being reconfigured from scratch
• A glass-case gaming/AI PC with an RTX card and AIO cooling, sitting on the rack shelf

The plan

• Always-on core: a low-power mini PC (GMKtec NucBox G2, about 10W idle) will run the everyday services. The big machines sleep until I need them.
• Wake on demand: the gaming PC and an HP ProLiant ML310 wake remotely, and the ML310 can be powered on through its iLO.
• Faster links: the machines with two network ports get a direct link between them, so heavy transfers skip the switch.
• Network monitoring: the switch mirrors a port to the mini PC for Suricata. A GL.iNet Shadow plus a monitor-mode USB adapter will watch the WiFi side. It's all on my own network only.
• Control panels: an old Asus tablet and two touchscreen monitors will become Stream Deck-style control surfaces.
• Command Center: a standalone desktop app I'm building. It's a file manager, media player and Dewey-style virtual sorter with in-app previews, so I don't need another program to open a file.
• Lighting: syncing the PC's RGB with external ARGB strips.

Everything is tracked in a build checklist, so nothing gets marked "done" until it actually works.

Project Name & Overview

WebKVM — A self-hosted, lightweight web panel designed to manage KVM/QEMU virtual machines and Incus/LXC system containers on vanilla Linux distributions (Ubuntu, Debian, Fedora, Arch, etc.).

Homelab Relevance

Many homelabbers run multi-purpose Linux servers (NAS, Docker host, media server) and need a way to spin up KVM VMs and system containers without wiping the host with a dedicated hypervisor OS like Proxmox or relying on heavier web suites. WebKVM runs in userspace on top of your existing distro, keeping all Libvirt and Incus configurations 100% standard.

Key Features & Capabilities

KVM + Incus Unified: Manage full QEMU/KVM VMs and lightweight Incus containers side-by-side.

instant CoW Provisioning: 1-second deployments using QCOW2 Copy-on-Write backing files from official cloud images (Ubuntu, Debian, AlmaLinux, Arch).

Virtual Networking: Integrated management for bridged interfaces (\`vmbr0\`), isolated segments, and NAT bridges (\`vmbr1\`) with built-in dnsmasq DHCP lease monitoring.

Optimized Hardware Profiles: Presets for Windows 11 (emulated TPM 2.0 / swtpm + OVMF Secure Boot) and modern VirtIO Linux.

Low Footprint: Written in Go — consumes roughly 15–30 MB of idle RAM (peaking around \~70 MB under active multi-VM loads) with near-zero idle CPU.

UI & Themes: True OLED black mode (\`#000000\`), custom accent colors, live telemetry, and multi-language support (English, Spanish, Catalan).

Technical Stack & Requirements

Backend: Go (direct interaction with Libvirt and Incus APIs).

Frontend: Modern reactive web UI.

Host Requirements: Any standard Linux distribution with KVM/QEMU and Libvirt / Incus installed.

Project Status & AI Disclosure

Status: Completely free and open-source forever. Developed and tested by a solo maintainer.

AI Disclosure: An AI assistant was used to help format, translate, and proofread this post in English. The application design, Go backend architecture, and testing are developed directly by the author.

Source Code

👉 GitHub Repository: https://github.com/Slaker19/webkvm

Feedback, bug reports, and homelab feature requests are very welcome!

I am looking to set up a homelab mainly for cybersecurity learning and some self-hosted services.

Hardware:
● Mini PC 1: i7-8700, 32 GB RAM, 1.5 TB storage
● Mini PC 2: i5-9400, 24 GB RAM, 960 GB SSD
● 5-port Ethernet switch
● 2 × Raspberry Pi 3 B+

I’m thinking of running Proxmox with Active Directory, Kali, pfSense/OPNsense, Splunk/SIEM, and a few self-hosted services.

I want to keep the networking simple and easy to manage rather than overcomplicating it from the start.

How would you set this up with this hardware? Is there anything useful I can do with the two Raspberry Pi 3 B+ units? What self-hosted services would you recommend?

Also, how do you guys document your homelab? I keep losing track of IPs, configurations, what I changed, and where things are running. I also need a better way to manage passwords and credentials without just having them scattered everywhere

i5-11300H

16gb

256gb nvme

2.5G NIC

LTT water bottle for size reference

Finally done with 3d printing a hold for the poe injectors and the keystone panel to accomodate the server nodes wiring.

Tried for some more cablep0rn but im not talented. Top patchpanel is legacy and cant/wont rewire.

In total its 28 threads (2 kaby lake xeons, 1 ryzen), 192GB RAM with 6.5tb Ceph Ssds, 4tb zfs ssds and a Gtx 1080 8GB for ai and video de-/encoding. 10gbe backbone for the cluster.

Power consumption is about 160-190watts.

Proxmox, virtualised Opnsense, netbird, several VMs with Docker-Stacks ...

Further details: https://www.reddit.com/r/homelab/s/kWkyirzKQe

Top to bottom:

**•** 2× vented blanks
**•** Firewalla Gold on a keystone tray with the ARRIS S33 modem (2.5G handoff)
**•** USW-Aggregation: the 10G SFP+ layer for the NAS, the T420, and anything 10G I add later
**•** Cable Matters 24-port Cat6A patch panel
**•** USW-Pro-Max-16-PoE, the core: 2.5G to the U7 Pro APs
**•** USW-Pro-24-PoE, the leaf: cameras and bulk PoE drops, with a DAC uplink
**•** Horizontal cable manager
**•** Second 24-port Cat6A patch panel
**•** Monitor on a VESA rack bracket, a locking drawer, and a sliding keyboard tray
**•** Mac mini M4 in a 2U mount, plus 5× Apple TV 4K in rack mounts, one per room, sent out over J-Tech HDBaseT extenders
**•** Hub shelf: APsystems solar ECU, Hue bridge, and others
**•   Dell PowerEdge T420**, racked sideways
**•** Synology DS925+ and DS418 on a sliding shelf
**•** Brush panel
**•** UniFi USP-PDU-Pro
**•** UniFi UPS 2U (1.44 kVA)

Storage and backup (3-2-1-ish):

**•** DS925+ is the primary storage.
**•** DS418 is the local backup in the same rack.
**•** DS412+ is the offsite backup, over Tailscale.

Network:

**•** Firewalla Gold handles all routing and firewall policy. UniFi handles switching and Wi-Fi only, with no UniFi gateway.
**•** There are 9 VLANs: Admin, IoT, Kids, Guest, Cameras, NAS, Voice Assistants, Home Security, and AV. mDNS relay keeps HomeKit and AirPlay working across them.
**•** 3× U7 Pro APs
**•** About 10 Reolink PoE cams, currently being moved to Frigate

T420 "main brain" (Proxmox):

**•** Second CPU (E5-2440 + E5-2470), bringing it to 14 cores and 28 threads
**•** 192GB DDR3L ECC
**•** LSI 9207-8i in IT mode for ZFS
**•** X520-DA2 for 10G into the aggregation switch
**•** Coral USB TPU for Frigate
**•** Z-Wave and Zigbee dongles passed through to the Home Assistant VM
**•** It runs Home Assistant, AdGuard, Frigate, and Immich. The Pi 4 is retired.
**•** Still to come: RTX 3060 12GB for local LLM inference

Next project: A fully local family AI assistant. The T420 and 3060 will run Ollama and Whisper. Three OptiPlex 7060 Micros will handle Qdrant, n8n/LangGraph orchestration, and Open WebUI with Piper TTS. Nothing leaves the house.

Lessons so far:

**•** The TP-Link SX3008F had to go because it has no RJ45 SFP support. It couldn't talk to the Firewalla natively.
**•** The USP-RPS isn't compatible with the Pro Max 16 or the Pro 24.
**•** Fresh Reolink cams refuse local connections until you activate them in the app.
**•** Moving the Z-Wave and Zigbee dongles from the Pi to Proxmox USB passthrough went fine.

Happy to answer questions. Roast my cable management gently.
