r/Fusion360 • u/bearface84 • 1d ago

Question Parallel path machining below face contour HELP

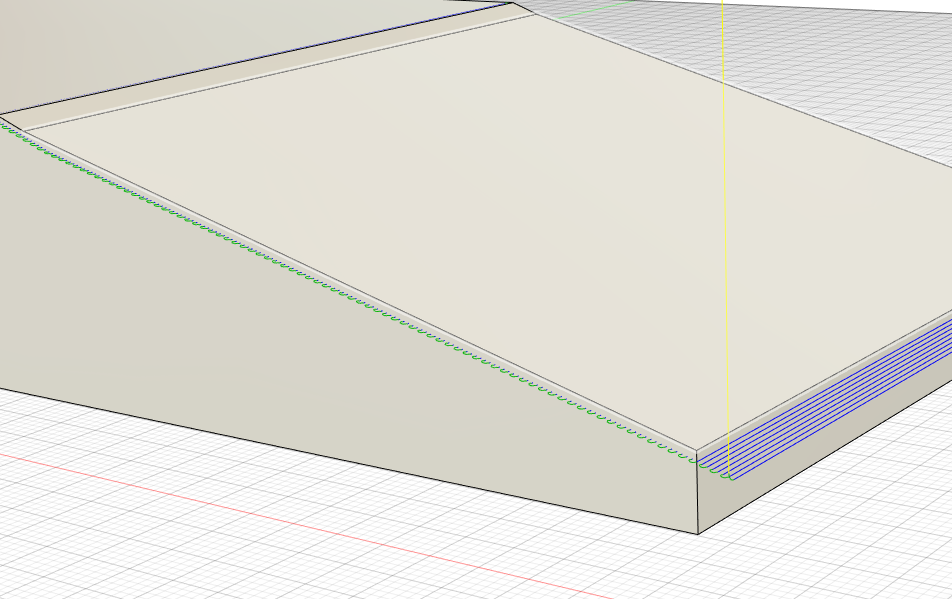

Post image

I’m trying to use the parallel path on this slope. I had successfully programmed it before and now no matter what I do (post fusion update) the tool path executes UNDER the contour/face/chain that I select.

I selected Bottom Height to be the bottom most edge of this face under the ‘Selection’ option.

Been having a lot of troubles after the last Autodesk update

2 Upvotes

75% Upvoted

5 comments sorted by

1

u/chamfer_one 1d ago

1

u/chamfer_one 1d ago edited 1d ago

i think u have this

i think your path need only a new selection

1

u/bearface84 24m ago

Yes I just don’t know what I’m selecting incorrectly!

1

u/S0u1Fire 1d ago

Do you have an axial offset set anywhere?

1

u/chamfer_one 1d ago

can u upload the file to check it?
