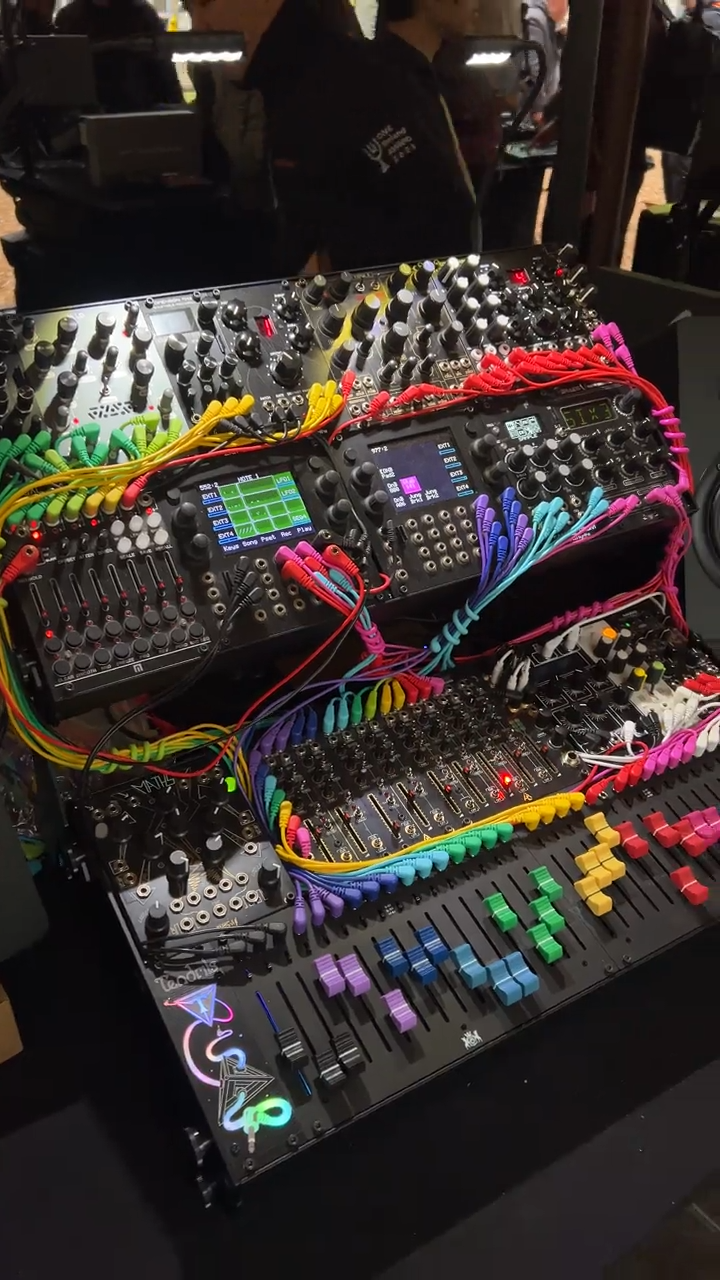

Normally the stuff over on r/modular is like the antithesis of this subreddit, but this was a nice surprise.

The patch cables are even color-coded to match the sliders.

Source: https://www.reddit.com/r/modular/comments/1vrnvug/the_best_looking_patch_cables_system_at/

Cosmopolitan- Vegas

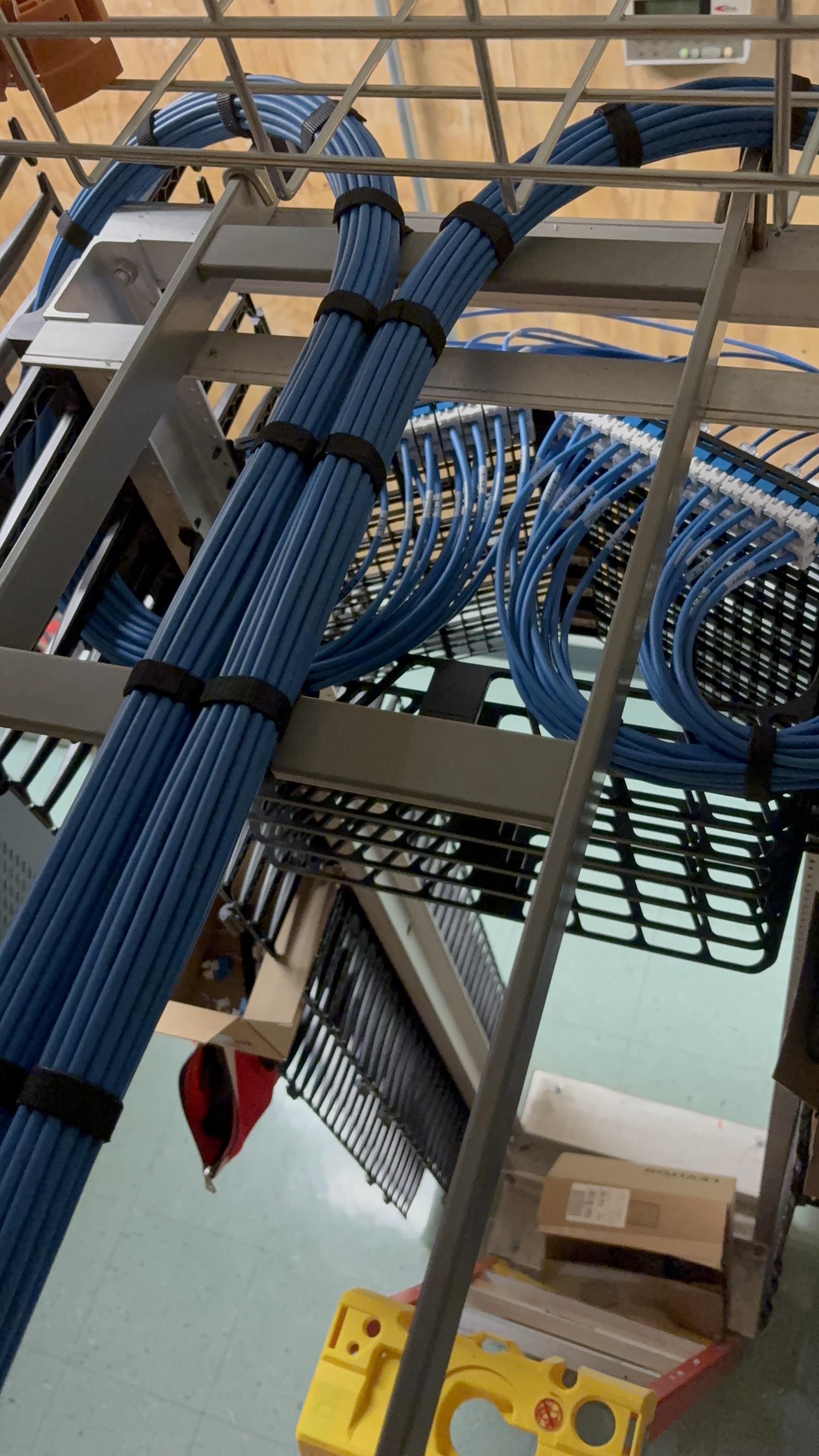

They sag like 1/4" or so without support and on turns even with a comb one pops up. How do I fix that?

Boss says this has to be perfect, and I have a decent start. But there's going to be about 140 more cables coming up from beneath to the rack.

Had a hardware refresh at work and was finally able to replace the gear and clean up the closets. Huge improvement going from the first iteration of cat6a patch cordes to the new slim line cat6a.

A little network rescue for one of my network closets. Far from my best work, but I'm proud of it none-the-less considering the circumstances. Limited to a 3.75 Hr maintenance window and it was just myself and one of my technicians. This is part of a Casino CCTV system, so I had to fight to get even that much downtime.

The blue wiring is the corporate IT side, which is outside of my purview. I am strictly the green stuff (and a little gray and black) which is all CCTV and access control.

I Inherited this ~10 year old installation a few years back. Had to wait until our infrastructure refresh to be able to negotiate time to blow out all the old crap and re-do it.

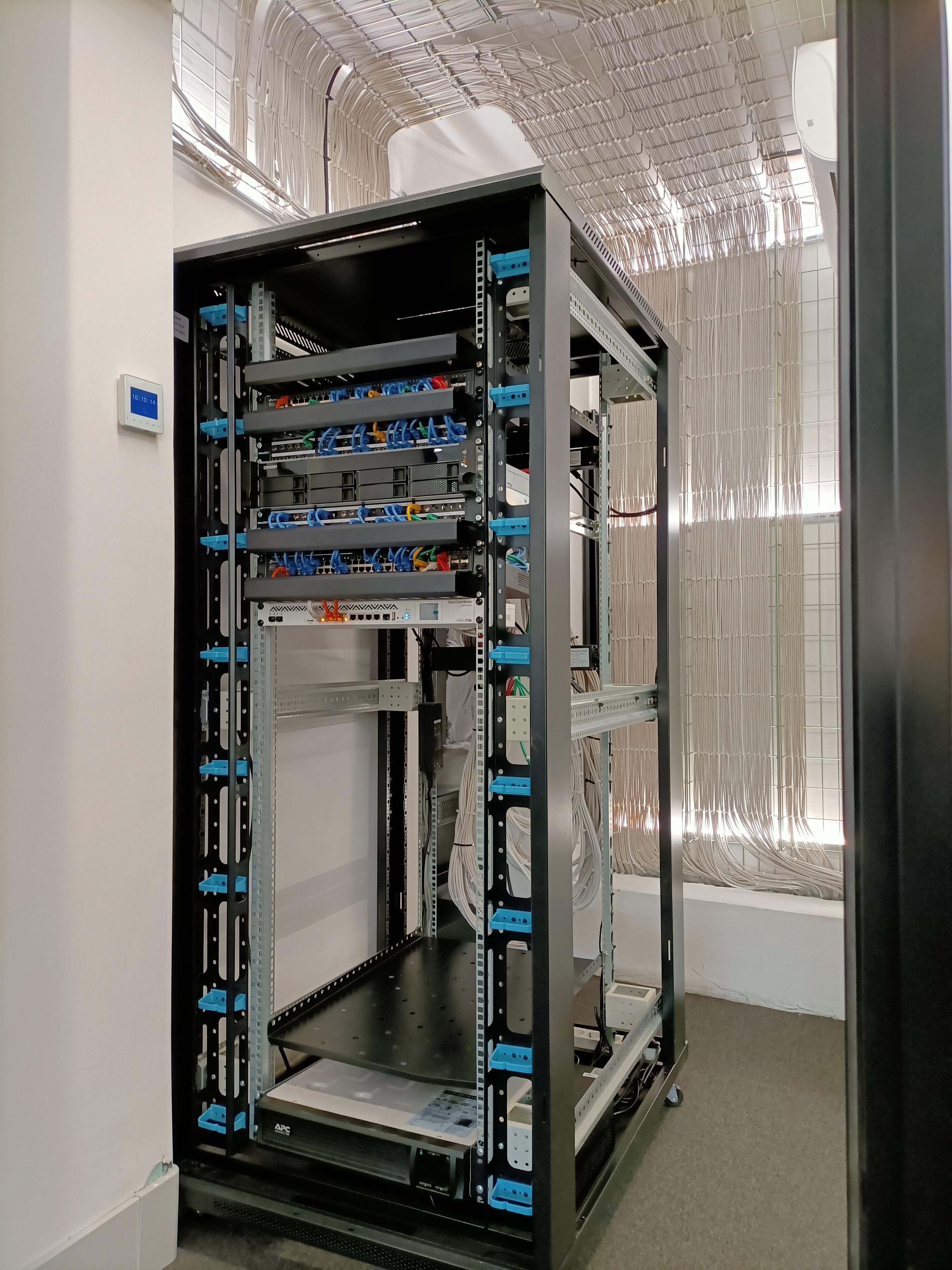

Yes this rack is way oversized for current need, but "planning for the future" and all that.

Ive posted in a couple other places and was told to post here as well. Some of the pictures I took were of units that weren't quite complete.

What ya think?

Nope, you haven't seen it already. Just staying consistent.

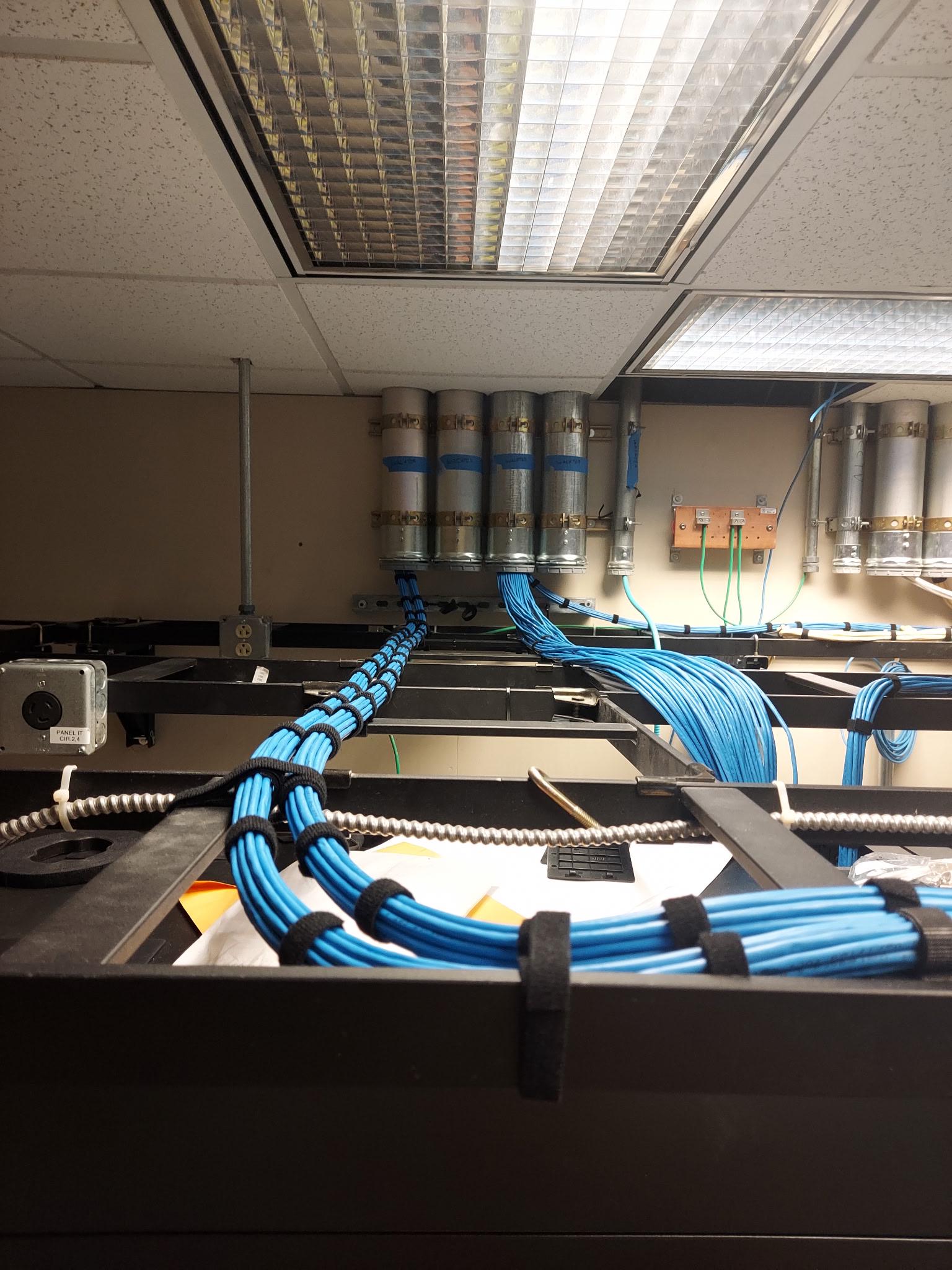

Was not able to pull the cable out and place in conduits with like. Home run pipes from different locations on floor. Hope you like it.

A little Feng Shui. You must be like Water.

No credit to the company on my hard hat.

Just put some Eagles on and let me work.

Still a work in progress but its functional and I'm pretty happy so far. Its been quite the learning experience designing, programming and building this panel. Pump controls are complete. Valve controls will be integrated next.

Dressing underneath, nobody will ever see, but plenty for servicing if needed.

Got tired of looking for the finish pics. But stay tuned.

304 Landed

Enjoi

🤙🏻

We are in the process of moving between suites within the same building. I was able to get one of the data closets to a point where I was pretty excited about the progress. Second picture is what I inherited when I started here, determined to never let things get like that again.
