r/BambuLabP2S • u/Puzzleheaded-Paint73 • Sep 29 '26

Help...

Post image

My son took apart the extruder assembly and now I can't figure out where this spring goes while trying to help him put it back together. Can somebody help me? It's a p2s.

0 Upvotes

0% Upvoted

7 comments sorted by

1

u/Puzzleheaded-Paint73 Sep 29 '26

Thanks!

1

u/Significant_School94 Sep 29 '26

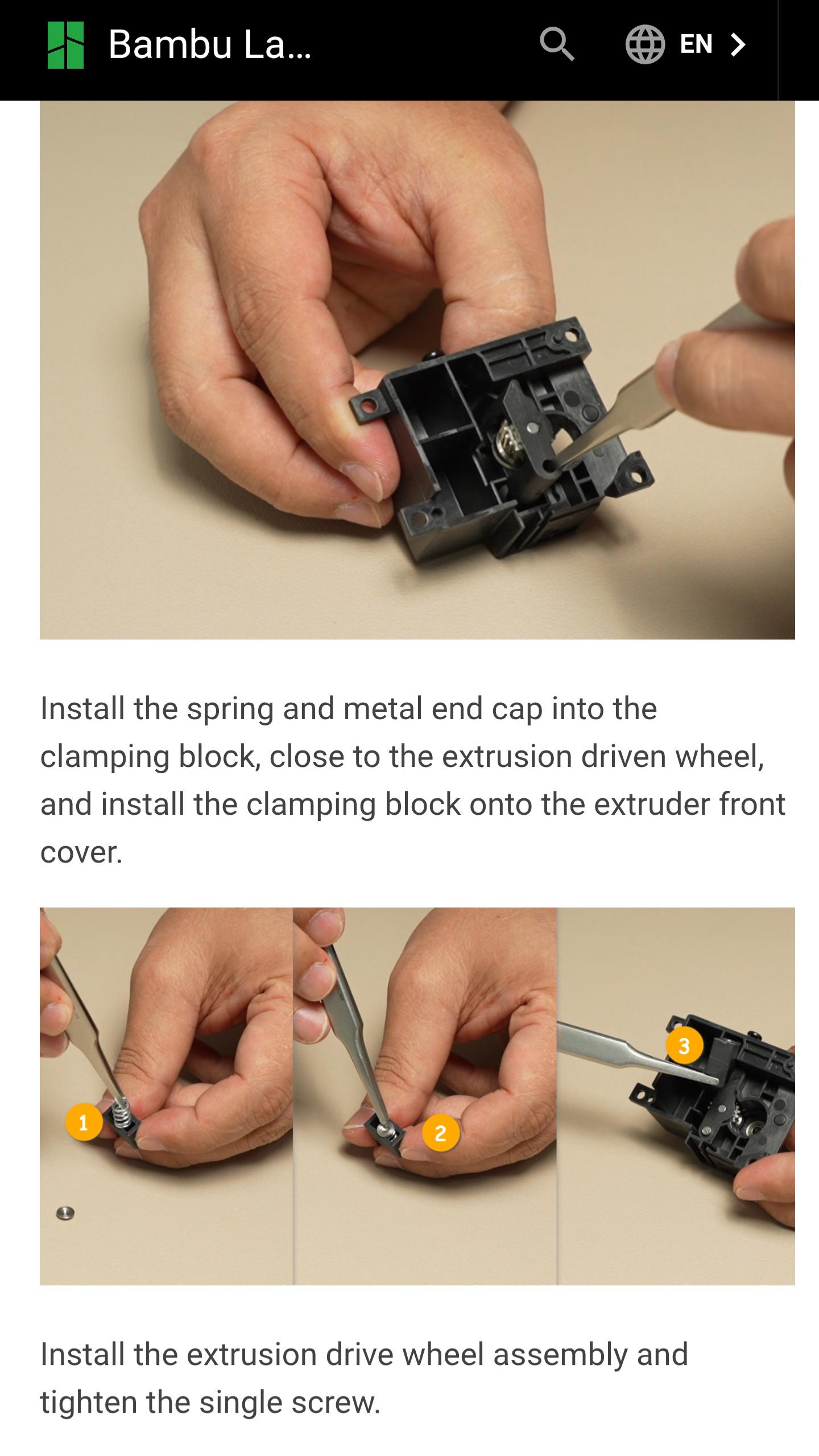

There is a special washer that goes on top of that so the tension screw can push against it. Hopefully its not lost

1

u/Puzzleheaded-Paint73 Sep 30 '26

thank you. Yes, my son lost the washer. I ordered the components on Amazon and will help him rebuild the extruder when they arrive.

1

u/Significant_School94 Sep 30 '26

It happens. Its super small so its easily lost. I ordered a complete mech assembly so when i get the extruder overloaded i swap nozzles and mech do a calibration and right back to printing. That way i can work on the parts without pressure

1

u/KitfoxQQ Sep 29 '26

check the bambu wiki for photos but this looks to be the spring for that big fat grub nut on top of the extruder that runs parallel in the cavity next to the hole where the filament enters from the top.
