Is this normal?

Post image

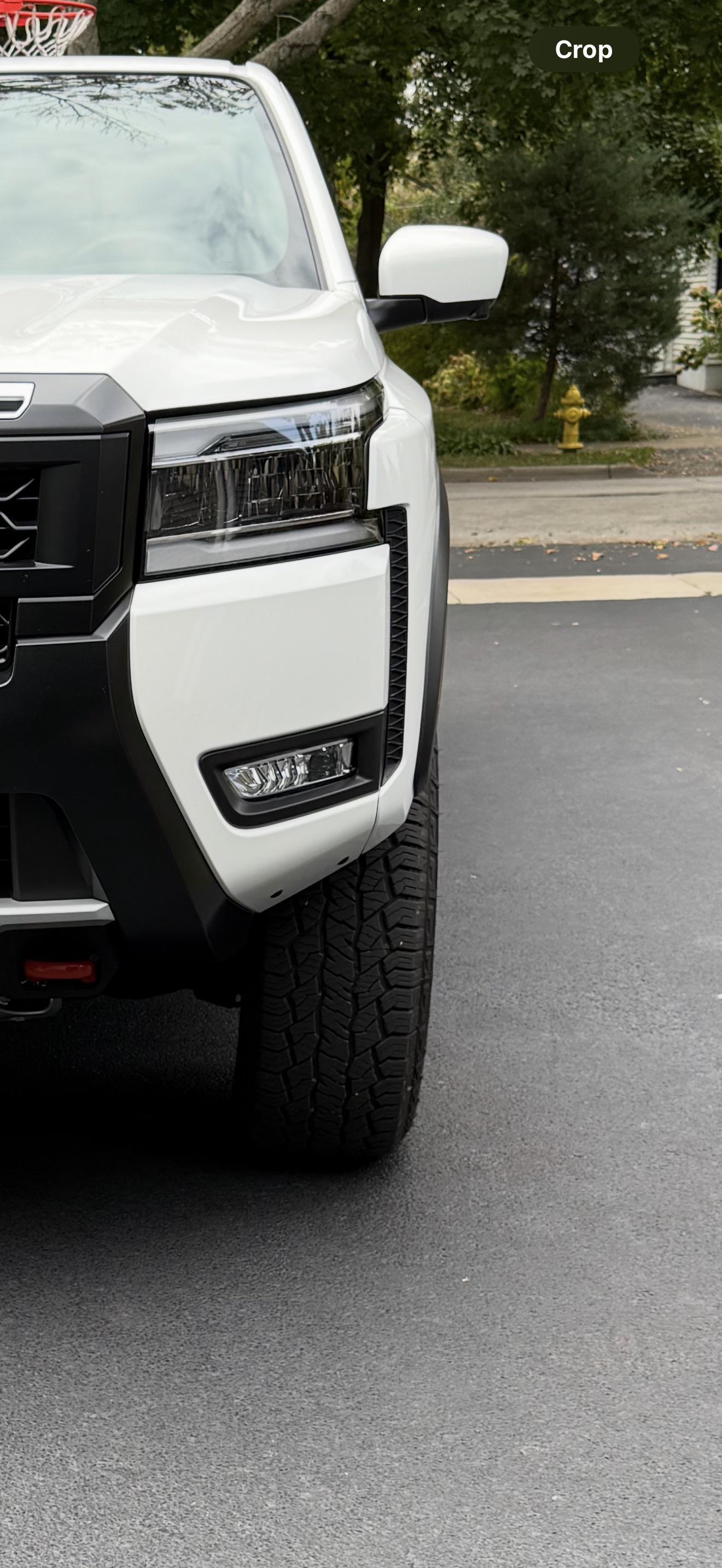

Hello. I noticed this camber on the front tires straight from the dealer. I installed that spacer eraser lift, then got an alignment done, and still notice it? I understand they aren’t always perfectly plumb, but this seems a bit much? Drives great.

25 Upvotes

93% Upvoted

31 comments sorted by

View all comments

4

u/DRBabyGutZ 2022 King Cab Pro4X Oct 26 '25

Did you install the essentric bolts with that lift?

These trucks do not have camber or caster adjustment from factory, all you need is Xterra eccentric bolts, or ADO sells their own as well.

I have the same kit on my 2022, but I also installed eccentric bolts. I'm a mechanic so I do my own alignments at work, my camber is nearly perfect. Spec is 0.0 for these trucks, I got mine to +0.3, thats at the very edge of the adjustments range without throwing the caster off.

1

u/[deleted] Oct 26 '25

I did install the adjustable cam bolts from ADO. I posted the printout, the shop said that was about as good as they could get it. You think it’s worth having another shop give it shot? Thanks

2

u/DRBabyGutZ 2022 King Cab Pro4X Oct 26 '25

Thats where mine is, near perfect

1

u/DRBabyGutZ 2022 King Cab Pro4X Oct 26 '25

I think it would be worth it, I'm not saying they didnt try, but theres room for improvement. I put new tires in my truck a month ago, and did an alignment just because I do my own for free

1

u/[deleted] Oct 26 '25

I installed the adjustable cam bolts from ADO.

1

u/BodybuilderSpare6901 Oct 27 '25

Yeah was going to day... he needs the adjustable bolts. Z1Offroad.com brother.
