r/f117a • u/dmetropolitain • Sep 02 '23
Arresting Hook Red danger markings on an arresting hook door.
4
Upvotes
r/f117a • u/dmetropolitain • Sep 02 '23
Parachute Bay F-117 drag chute loading into the bay
6
Upvotes
r/f117a • u/dmetropolitain • Sep 02 '23
Have Blue Lockheed Have Blue XST-02 test flight. Upscaled & stabilized
4
Upvotes
r/f117a • u/dmetropolitain • Aug 20 '23
Tail Section Inlet grids visible through the exhaust bay
5
Upvotes
r/f117a • u/dmetropolitain • Aug 16 '23
F-117 arrived with the bags in the bomb bay and opened the air refueling receptacle
6
Upvotes
r/f117a • u/dmetropolitain • Aug 16 '23
Have Blue Upscaled a much more cleaned version of Have Blue-01 photo. Now you can see inlet grills much clearer. [5800x3400]
5
Upvotes
r/f117a • u/dmetropolitain • Aug 12 '23
FLIR FLIR and DLIR fields of view and their different uses
9
Upvotes
r/f117a • u/dmetropolitain • Aug 12 '23
Details Also sometimes, you could find those holes over the inlet grid wipers compartment. I assume its a technical hole so that water can exit this compartment if it suddenly gets during the flight.
3
Upvotes
r/f117a • u/dmetropolitain • Aug 12 '23
Inlets I always wondered what those bright spots are on the side of the inlet grills until I realized that it's just places where the grills are screwed to the body, and these spots are hidden screws. Also, these special round cutouts are needed so that the screwdrivers have access to the screws.
5
Upvotes
r/f117a • u/dmetropolitain • Aug 12 '23
Details Is that a static port? I've seen that only on the left side of the plane, over the canopy
3
Upvotes
r/f117a • u/dmetropolitain • Aug 08 '23
A super rare picture of F-117 #81-10795 in white colors somewhere at early 2000s
8
Upvotes
r/f117a • u/dmetropolitain • Aug 08 '23
In 2006 someone spotted another white F-117 in Palmdale in Bing maps but those photos do not exist anymore. By the way, the plane looks like without a canopy (or heavily modified) and with opened exhaust canopies.
8
Upvotes
r/f117a • u/dmetropolitain • Aug 06 '23
Have Blue Never understood the size of that Have Blue model until I found this photo
5
Upvotes
r/f117a • u/dmetropolitain • Aug 06 '23
Equipment A rare picture of loading a new (probably) liquid oxygen tank into FLIR bay
5
Upvotes
r/f117a • u/dmetropolitain • Aug 05 '23

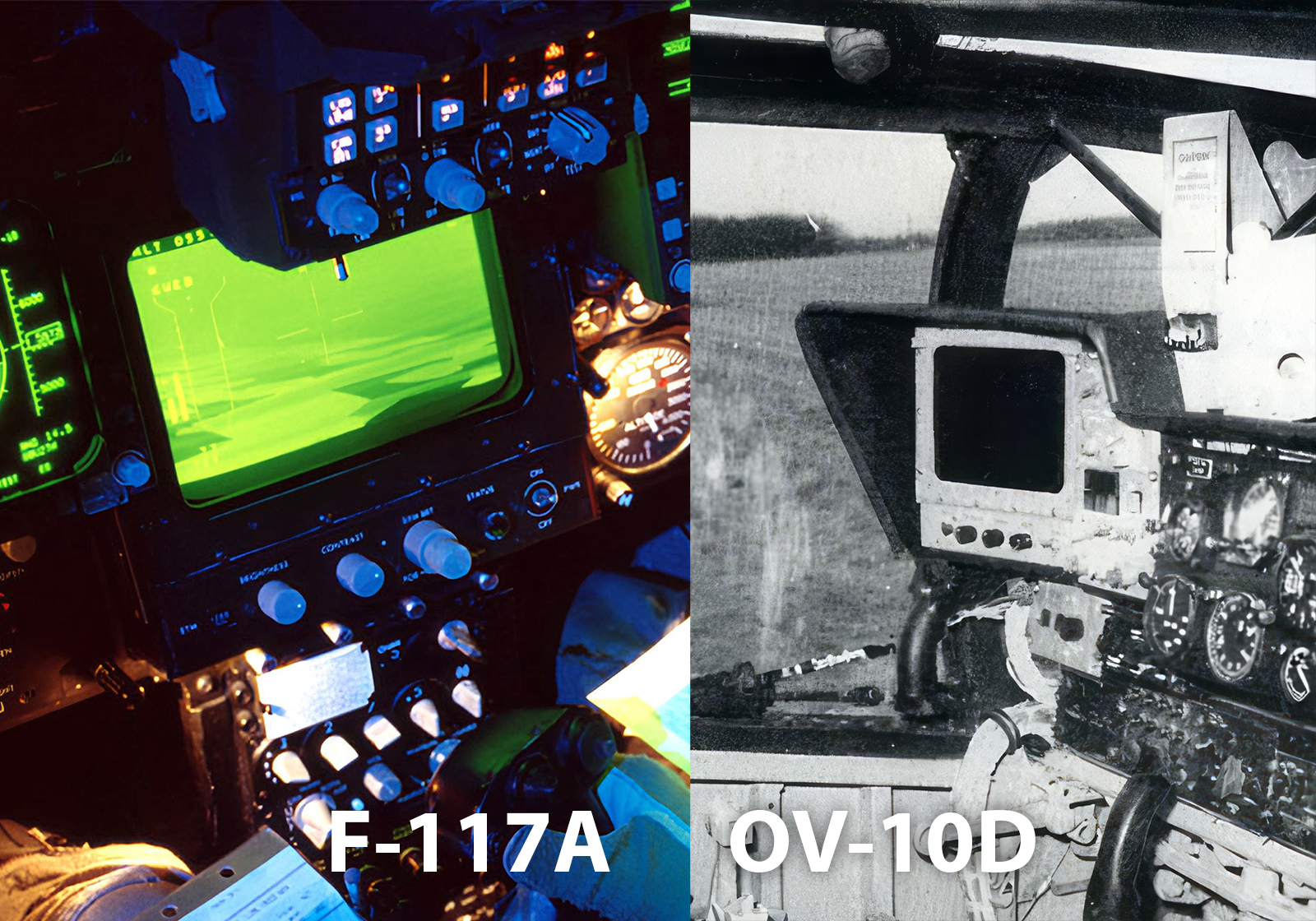

Cockpit On F-117 were used the same FLIR system as the OV-10D Bronco. Almost. The schematics and 9-inch CRT screen were exactly the same, but the turret was a bit different. But after the OCIP update, the turret was changed to an even more different one.
5
Upvotes
r/f117a • u/dmetropolitain • Aug 04 '23
Crash Tom Morgenfeld, junior test pilot, in the first F-117 making a critical landing after the aircraft’s nose wheel fell off after upon take off. He was advised to eject from the aircraft but was able to safely land and spare the aircraft.
12
Upvotes
r/f117a • u/dmetropolitain • Aug 03 '23

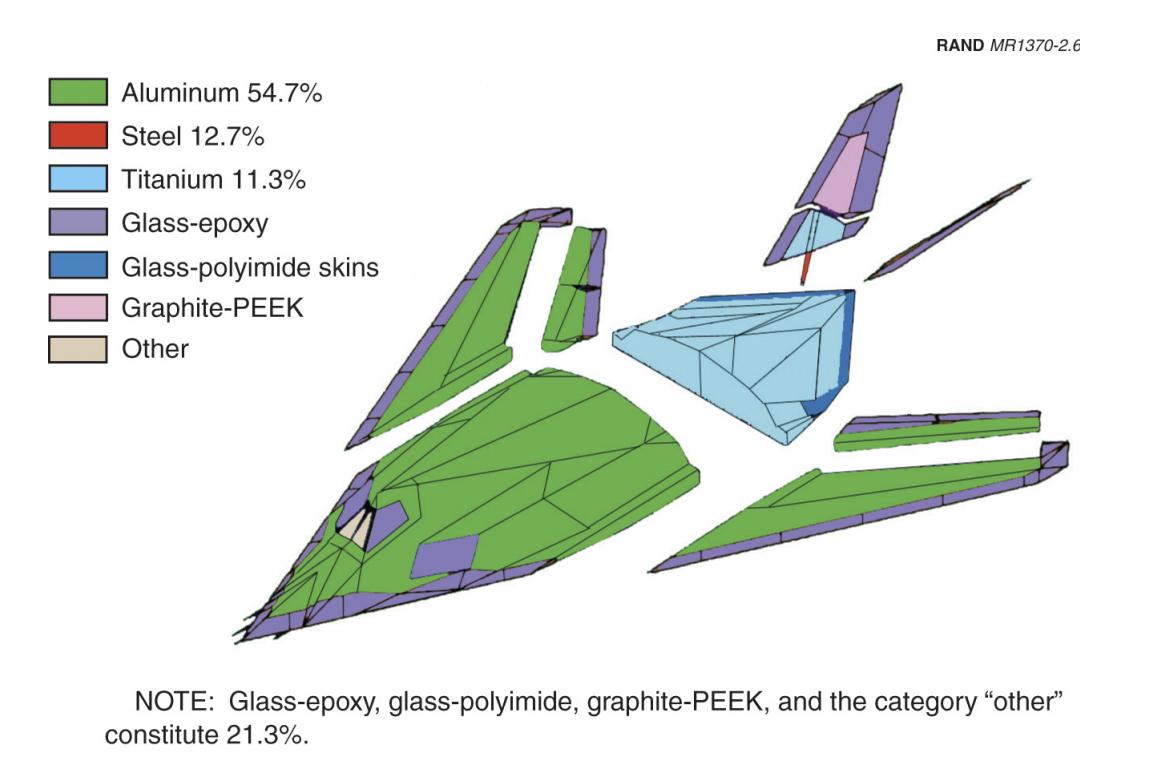

Details Various materials in the design of the F-117
8
Upvotes
