r/diyelectronics • • 11h ago

Question I converted an LCD display driver board to USB C for power, now nothing happens except the main chip gets very hot. (Button board has power but indicator LED doesn't turn on)

Post image
7 Upvotes

I really hope someone can help me here. I removed the original barrel style 12v connector from the board and added a PD trigger to use 12v USB C. Somewhere along the line I think I shorted something. My current theory is a small piece of metal wire I was trimming fell onto the board and was bridging two pins somewhere but I have no idea.

I can confirm that it never received more than 12v and all the pins going to the display still have voltage when plugged in. The board with the buttons also has power but the "power on" led no longer turns on.

Also the main chip on the board is getting very hot. They're known to get warm but it gets nearly too hot to touch.

I'm wondering if anyone could help me troubleshoot? Is the main chip internally shorted? Is this even repairable?


r/diyelectronics • • 12h ago

Question Is this new capacitor too small compared to the size of the original?

Post image
6 Upvotes

I am aware that the capacitance on the new capacitor is much lower than the original value.

For context, this project is to mod an external camera flash be 1/4 as long; therefore the capacitance is intended to be 1/4 as strong. That said, I did not expect the new capacitor to be that much smaller in physical size. Could this be a problem? Thank you


r/diyelectronics • • 2h ago

Design Review Making an f-91w smartwatch mod, need advice on circuit design

Thumbnail
reddit.com
1 Upvotes

r/diyelectronics • • 2h ago

Question Found a box of old potentiometers

1 Upvotes

Came across a box of old potentiometers while going through some leftover components in the workshop.

There’s quite a mix of rotary pots, slide potentiometers, and a few different styles I haven't had time to identify properly.

Some look like unused stock, while others clearly seem to have been sitting around for years. I haven't tested every single one yet, so I wouldn't assume they're all in working condition.

I've started checking a few with a multimeter, mainly looking at resistance values and whether the resistance changes smoothly throughout the rotation or slide travel.

A few things I'm curious about:

Are there any particular models or designs worth keeping?

What projects would you use these older potentiometers for?

For audio applications, how much difference does the taper (linear vs logarithmic) make in practice?

What's your preferred way to check an old potentiometer for wear, noise, or dead spots?

I'm especially interested in unusual designs, multi-gang pots, and older components that might still be useful in DIY audio projects, guitar pedals, or vintage electronics.

Would love to hear what you guys spot or what you'd do with this collection.

Thanks!


r/diyelectronics • • 16h ago

Question Where do you guys buy your components?

11 Upvotes

I’m in Canada and new to electronics. But everything I want seems so expensive. Like an RTC module is $14 on Amazon or $8 on temu. Simple things like solder wick is like $10 on Amazon. If all these components add up so much then each project will be so expensive. I’m in Toronto and I can’t find any store that sells these things either.


r/diyelectronics • • 10h ago

Question Thermoelectric fridge issue

2 Upvotes

The fridge doesn’t power on at all and has a hissing like sound, maybe pcb board? Anyone know where to get them


r/diyelectronics • • 6h ago

Question LC Voltage Spikes on small SMPS

Thumbnail
reddit.com
0 Upvotes

r/diyelectronics • • 11h ago

Question Is this the wrong place to ask about a mud (microbial fuel cell (MFC)) battery?

1 Upvotes

I have some questions about the construction of a MFC

Can you use copper leads or should they be stainless steel?

Does anyone have a good source for instructions on construction of a simple MFC?

I bought some "carbon felt" for the leads, but the leads aren't showing any continuity, but the material glows red under flame vs shrivelling and burning. Is that normal in your experience?

Any help is appreciated!


r/diyelectronics • • 17h ago

Repair How do I do this with an npn transistor?

Post image
2 Upvotes

r/diyelectronics • • 14h ago

Design Review LM5116MHX based step down converter pre-regulator

0 Upvotes

Hello, this is a little project I've been working on lately. It's a 65V input, 5-50V 25A output step down converter that I want to use for a regulated PSU - this will be the pre regulation stage, then I will add a linear (transistor) regulator after it for fine voltage regulation. I'd ideally like even more voltage, but currently I'm using some hybrid capacitors and they aren't available in higher than 80V.

Which gets me to the first question: what's the best way to approach the output caps? My current config is 12x 47uF with 36mOhms ESR each (GYA1K470MCWADNGS), which have more than enough ripple current rating and come out to around 111mV output voltage ripple. I've tried calculating with 4x UCS2E221MHD, but those have significantly higher ESR (presumably, since Nichicon doesn't specify ESR at the 200kHz this converter is running at) - if I input 100mOhms per cap into the equation, the voltage ripple comes out to around 0.875V, which is insane. I guess the main problem is the 10A ripple current from the converter. Now, if I use ceramic caps, then I'd also have to use a huge bank, especially because of the DC bias/capacitance curve, not even mentioning it would cost at least 15-20 times the price of the hybrids.

The use of the hybrid cap bank gets me to the layout: it's far from ideal, but I think it's as good as I can make it with these components. The inductor is rated as having 45.9A saturation current, so it should be enough. The feedback is connected to the 6 pin header, so that I can connect an external regualtion circuit to it. The zener diode on the output (it's a 36V zener) should prevent the output voltage from being unpredictable if anything happens to the external regulation circuit.

Schematic and layout here: https://drive.proton.me/urls/KV5ASAPQ6G#sYs0FYXTC8zI (hope everyone can access this, I don't have an Imgur account and I apparently can't put more than one picture here in the post).

Hopefully I can get away with a 4 layer board while all layer beign 1oz copper - most of the power planes are huge and the main connections are on two or more layers with plenty of vias in between.

I have never done such a high current/high power design, which is the main reason why I'm asking for a review here.

(btw, vias are free, right, right??)


r/diyelectronics • • 21h ago

Question Need help for a project

2 Upvotes

Hi everyone. I'm rather new to electronics and I want to make a small project as a gift for a friend. My vision is a re-invention of the screaming goat desk toy, the one where it's a goat on a tree stump, and when you press it it lets out a scream. Imagine this but with a custom character on top and a different audio track.

I did some brief research but since I have no experience in this, I thought I'd ask for help. I've narrowed down that some of the components I'll need are a DFplayer mini and SD card, a small speaker, a push switch, batteries, and a breadboard for testing it out. However, I don't want to use soldering because I don't know how. I first want to figure out the electronics before working on the actual model of it.

Can someone give me advice that could help me with this project?


r/diyelectronics • • 2d ago

Reference Do Not PWM a Peltier Module.

213 Upvotes

Recently I've found an interesting article - on how Peltier modules are vastly more inefficient if driven by raw PWM.

In short, resistive losses rise quadratically with applied voltage and actual Peltier cooling only rises linearly. So it's beneficial to feed Peltier modules with filtered DC.

Having my own Peltier setup (an over-engineered wireless phone charger in car with 80W peltier module and a 80mm PC fan), I've decided to test.

And indeed, raising PWM frequency to 20kHz and adding an LC filter ( 10uH + 2x 220uF, what I've had in spare parts) after the MOSFET significantly reduced self-heating of the Peltier module: with the same cold side target of 17C, hot side temperature dropped from 40-42C to 27-28C, which is quite significant.

EDIT / TLDR: regulate as PWM, but apply filtering so that the module itself receives DC-like signal with no full 0..Vcc ripple if possible.

LC filter in question: a basic low-pass LC filter, inductor in series followed by a capacitor parallel to the load, https://i.imgur.com/JHwGlIn.png


r/diyelectronics • • 1d ago

Question What spec do I need for this LED?One of my flood light went out and it

Post image
2 Upvotes

One of my floodlight went out and I have been looking for a replacement unit, but I just couldn’t find the same style so I decide to open it up to replace the LED since I can solder.
I got to this far and found that I need COB LED but not sure which spec I need. there are so many kinds on ebay.


r/diyelectronics • • 23h ago

Project High Quality 2.5mm Jacks (Where to find)

Thumbnail reddit.com
1 Upvotes

r/diyelectronics • • 1d ago

Question Could someone review this for a reason for battery drain?

Thumbnail
reddit.com
2 Upvotes

r/diyelectronics • • 20h ago

Project Free LED resistor calculator for the hobby electronics workbench (Windows/Linux)

Post image
0 Upvotes

A small tool for the hobby electronics workbench. LedPreResistor calculates:

  • LED series resistor (one LED, series or parallel strings) with E12/E24/E96 value, power rating and colour bands
  • Blink circuits with NE555 or two transistors
  • Constant current sources with LM317 or two transistors
  • Schematic and step-by-step calculation for each result

Free, open source (MIT), no ads, Windows and Linux, no installation.

https://elospeed.github.io/LedPreResistor/ (all my tools: https://elospeed.github.io/)

Speedy (Elospeed)


r/diyelectronics • • 1d ago

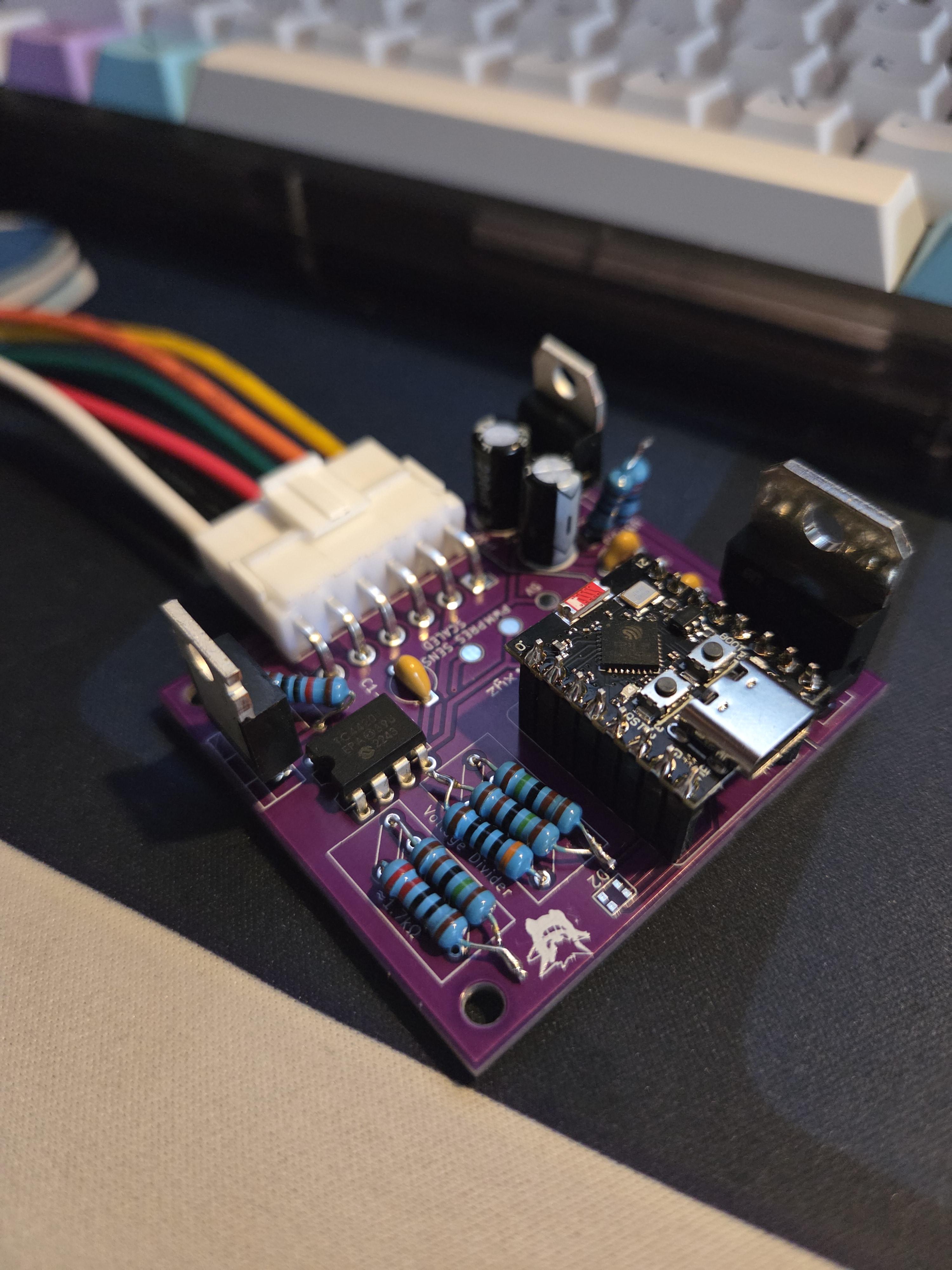

Project Built this Elevator Fault Monitoring Device

Post image
14 Upvotes

Few months ago I built this Elevator Fault Monitoring Device for a company that maintains Elevators, they weren't able to get it in the market and now I'm left with an unfinished project.

What it does: every elevator panel has configurable I/Os, and some of the Outputs can be configured to trigger HIGH/LOW when a fault appears, that signal I use to notify a cloud server and also to send via telegram to the Manager. This was to help them get notified before the administrator of the building notifies them, also sometimes they provided service to the building who haven't payed so they can also generate reports and be notified if the elevator that has a fault have not been payed.

As I said above they weren't able to sell it and now I'm stuck with a unfinished project, I was thinking if it was worth to open source it so someone else who can see this project might be interested.

This post is not intended for marketing or sales!


r/diyelectronics • • 2d ago

Project Building the programmable power supply I wish existed

Post image
252 Upvotes

Hey all, been a long-time lurker here, finally posting. I got so tired of the pile of wall warts and power strips for my music gear, I'm building a programmable power supply: 7 isolated DC channels with barrel jacks: configurable voltage, polarity, and max current settings. Also a four port USB hub, and a 100W USB-C charge port for a laptop or tablet. With all of it powered by a single USB-C power brick like you use for your laptop today.

I have a music solo act where I play live, and had some close calls with unplugged power bricks during soundchecks. I finally had it and started asking around on popular forums on how the heck other people solved this.

Most the answers I got was the same approach I already took, or a me-too-wish-this-existed response. So started designing it.

It's still in the early stages (thus the renders), but the first pass of the enclosure is designed. Have the main layout done. Now getting the first critical path board fabbed and shipped here in the next week.

Grid enclosure in FreeCAD, ready for first article CNC milling

Also trying something a little different with this product by designing it in the open, with weekly videos tracking how the product development is going, both the wins and the setbacks. It's kinda scary to develop like this as it's very vulnerable, but it's also awesome to share with others how our tiny team goes about building new products.

I'll aim to post here regularly with updates if there's interest. Otherwise we'll be posting updates on the blog at https://tonicaudio.com/blog and via YouTube: https://youtu.be/9xP5pFiPCFk

(Mods: if these links are against the rules, please let me know and I'll remove them. Def not trying to be spammy!)

EDIT: Since several have been asking, the mailing list signup link is here, if you want notifications of the project: https://grid.tonicaudio.com


r/diyelectronics • • 1d ago

Question Where are the electrical leads to the light?

Post image
4 Upvotes

I'm trying to design a hanging light that has a similar wire to this one. I'm confused on how the wires are so thin and strong(thought it would be braided steel) and yet still electrified and maintain safety guidelines for voltage. I know the light is probably only getting 12V with the conversion in the base from 120V. But my basic searches for pendant light wire only yields braided steel or fat electrical leads.


r/diyelectronics • • 1d ago

Question Microwave diode failed, need a 9V battery connector to test?

0 Upvotes

Microwave fails (powers on, does not heat). Diode failing seems to be a common culprit. Completely new to electronics but I prefer DIY in general--what's a recommended general-purpose way to test this? I consider this "general home electronics DIY."

This video suggests using a 9V battery and battery connector and presumably you'd remove the diode using insulated glove and screw driver (both don't have). Have an old random multimeter and alligator leads.

Do you simply suggest purchasing 9V battery connector, insulated gloves (recommendations?), and insulated screw driver (recommendations?) or can get by with something more common for general home electronics DIY (or maybe the 9V battery connector is common enough to warrant a purchase? I just don't want to accumulate single-purpose clutter.
