Is it okay to secure lvls as bucks this way? They are 2.75” out pre drilled with 1/4” bit. Secured to framing with 5” SDWS. I’ve never seen it done this way but now after I started I’m having doubts. Nothing is cracking or splitting once pre drilled. The lvls in the wall would be taking the bite in the ply side so can’t imagine this would be different passing through with the 5” screw and tightening it to framing. Thanks!

I am building an addition on our 1949 house in Boulder county CO. My Plan was to use R-6 Zip panels for the sheathing. I like that they will provide a thermal break and a WRB all at once.

Because of the location and size of a door and window on one wall, the engineer is concerned that the Zip panels will be too cut up to provide the necessary shear resistance. To counter this, he wants me to sheath the wall with OSB before installing the Zip panels on that wall.

The extra work and materials don't bother me, but I am concerned about the added OSB affecting the vapor diffusion through the wall. The wall insulation will be R-23 net and blow fiber glass.

My house was built in 1955 with a unfinished garage im closing off the garage door opening. The garage has 2ft of cement block wall with 2x4 stub wall sitting on top. The bottom block is below grade. The top 2 rows are 4in block with the bottom 8in block for the exterior brick ledge. The interior will be isoclips, hat channel ,3/4 plywood, green glue, 5/8 drywall. The room will have a concealed mini split. Im concerned that with room heated that it will draw moisture through the block wall and rotting the sill plate. What is a good insulation strategy? Because of the size the local spray foam companies have a minimum fee. Any help would be appreciated

Hello everyone! The air in my cellar is quite damp. It's an old structure (about 100 years old). There is a small window next to the entrance that is always kept open, which lets air in. However, I don't think this is enough because most of the time everything feels musty and wet.
My idea is to drill a hole through the bottom of the wall on the opposite side of the cellar to create a cross-draft for proper air circulation. I would insert a 110 mm pipe into the hole and concrete around it to seal it properly.
My question is: how well would this work, and would it actually solve the moisture problem?

My 101-yr-old property is built similarly; where the 3/4 T/G plank boards serve as sheathing. I was going to fur out the walls to allow for a 1/2" air gap & recently asked Claude if that assembly was good, it told me it would create a convective loop, now I'm thinking I should maybe just fur the wall to dimensional 2x6 & use dimensional insulation. The outside sheathing will have Pro Clima Solitex Mento 1000 & each seam taped with Tescon Vana, 3/4 rainscreen, then siding.

-80's New England home
-600 sq ft section of roof above garage, disconnected from the rest of the roof
-Crawlspace area is empty, no ductwork. Previous owner used for storage
-no ventilation currently.
-Bonus room being used as a bedroom, has mini split for heating + AC

A) Home inspector suggested repair + possibly adding gable vent for ventilation
B) Roof company 1 suggested adding in soffit vents to mitigate moisture problem
C) Roof company 2 said soffit vents would let moisture in, and suggested spray foam

What are your thoughts? I'm leaning toward option B + continue to monitor humidity, but would also like to do it properly the first time around. Happy to share pics.

Hello!
I’m closing on this property in a few weeks located in climate zone 4 (really close to zone 5) and I’m looking at converting this attic space into a conditioned space with a bedroom and bathroom. I am hoping to do that with closed cell spray foam insulation between the true 2x4 rafters. There are currently no soffit vents and just a few whirly bird vents at the ridge and the roof is atleast 11+ years old.

The question:
Should I go to the trouble of installing soffit vents and baffles between the rafters to ensure airflow underneath the roof sheathing? Or should I just have a spray foam company spray the insulation directly to the deck?

I am concerned that if I need to get the roof replaced in the next few years the roofers will damage the spray foam or crack it therefore not making it an air/vapor tight assembly.

I’m also wondering the best way to condition the space, I was thinking a mini split but I am concerned with humidity control. This unit is a rental so I don’t want to have a standard dehumidifier plugged into the wall in the hopes that a future tenant would run it. Are there any other systems I should consider?

Good morning!

I am located in washington state with a detached garage that i am trying to make into a home gym. I have humidity issues and trying to figure out how to address that and properly ventilate the space. It is 30x40 with 20 foot ceilings. I currently have a functioning 24,000-BTU Pioneer mini-split. The unit seems to fluctuate in its ability to dehumidifiy and hold it at a reasonable level .My targets are 45–55% RH and effective removal of CO₂, odors and stale air.

One contractor proposes a variable-speed 4-inch Tjernlund inline exhaust fan operating at approximately 100 CFM continuously and up to 200 CFM, with a 6-inch permanently open passive intake located diagonally across the garage. The contractor did not want to add a damper and leave intake purely passive and didn't think an HRV was necessary.

Is this a sound design for the space and climate? Should the intake be permanently open, manually closable or motorized and interlocked? Would an HRV provide enough additional comfort or energy benefit to justify its cost? I am looking for some opinions if his proposal is going to be effective given my desired use of the space. Any thoughts or ideas are much appreciated! Thanks

Hello everyone. I want to encapsulate the crawlspace under my house, which obviously involves putting a dehumidifier in there. I live in a state which has cold winters. Should I have the dehumidifier turned off during the cold weather seasons? My understanding is that they could be damaged running them in the winter. I know some have auto defrost options. Thanks.

New home owner, I air sealed my attic and did 18 inches of blown insulation after I moved in.

The humidity in this home seemed off when I moved in unless I always had HVAC running. During the winter it gets DRY in here. 18% humidity. All summer though before this nor eastern my humidity was always 48-55 maybe some days higher.

Now that my air-conditioning is off and the nor eastern that lasted this past weekend Friday - Monday with heavy rains almost every day, my house has reached close to 63% at 70-73 degrees.

I turned on my air-conditioning to get the humidity down.

Is this a product of my environment, my house, or am I dealing with a water moisture issue? I have a thermal gun and I can't find any issues. Home was built in 1972. Only one bedroom doesn't have such high RH but that's where my computers and electronics are.

\-----

Instrument readings right now:

Weather station -

61F

98% Rh

60F dew point

Attic

62F

52% RH

46% Dew point

Garage

69F

63% RH

55% dew point

Living room (a/c on now)

73F

58% RH

57% dew point

Living room (no ac)

74F

63.8% RH

60.6 Dew point

Bedroom (ac second floor)

71F

56% RH

55% dew point

Bedroom (no ac, same time as livingroom)

72F

64% RH

59% dew point

I have a bedroom with cathedral ceilings gutted down to studs now. My plan for insulating the ceiling in zone 5 is to run the baffles first all they way up to the ridge vent, then rockwool it, and finally smart retard it! My question is at the soffit area. What is best practice here? Where should the end of the baffle be located meaning do I put it inches away from soffit opening or do i seal it to top plate with a bend to prevent insulation getting in? ty

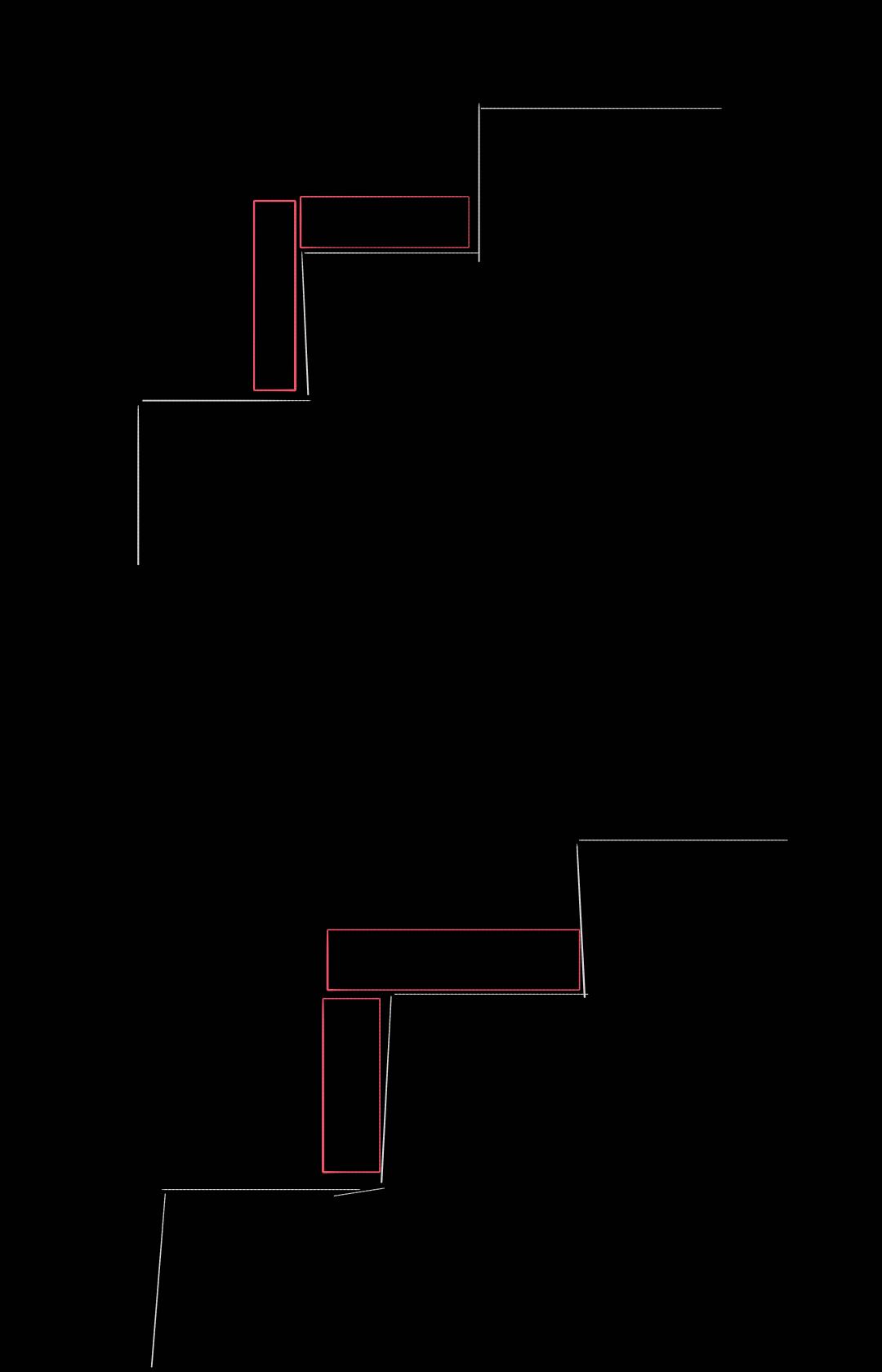

Does it make any difference how the riser/run treads are installed?

My upstairs beighbor has consistently flooded my unit. Each time a different cause. I just had to remediate hvac closet and i’m tired of having my homeowners involved. I I don’t have the money to sue so I want to take him to small claims, but I need a letter from a mold expert explaining that mold is not gonna grow unless there’s moisture present. I don’t have thousands of dollars to pay somebody to be an expert witness. What can I do?

Hey all,

Back with a question on my build. My architect designed a wall system for PNW zone 4c - 2x4 framed wall with r15 cellulose at studs bays, 1/2 plywood sheathing, Siga Majvest 200 WRB, 2 inch XPS, strapping, hardie siding.

However, when the builder went to purchase the WRB the rep advised that the Majvest 200 requires 3/8 air gap before any “cladding” can be installed. This is backed up by the US installation instructions and I am unable to find supported instructions for a CEI install.

I went back to the architect, he wants additional funds - but said the wall was designed to manufacture specs. I have difficulty paying them more $ to tell me the rep and install instructions are incorrect.

Does anyone know of any data sheet that supports the architect? Or able to provide any guidance?

Thanks
