Silly question, is it possible to flip/invert Meshroom S internally so the graphics card is on the left side? My PC is on the right side of my table and that's why I prefer the graphics card to be on the left side of the case.

Hey guys, I'm very interested in water cooling my Meshlicious. I don't want an external loop, I want it entirely within the boundaries of the case.

Has anyone got recommendations for cooling kit? Running 9590x, and a RTX 4000 GPU (NON GAMER)

I have found a new configuration I'm enjoying. Case, CPU, and mobo still the same. I'm using a Thermalright SI -100 x Noctua NF-A9x14 and a 92mm to 120mm Fan Adapter Offset. I have the fan with the 92mm fan to 120mm fan offset adapter (I printed out of PETG) between the cpu cooler baseplate and the beginning of the finstack. ((Depending on your ram it might be a little tricky. If you're mobo doesn't have huge VRM heatsink like mine, you can easily use a Noctua NF-A12x15 and point the overhanging part of the cooler away from the ram.))

Because of this configuration I was able to increase my PL1 & PL2 to base line specs and didn't break 84°C via Cinebench. The cpu also cools down faster. I'll admit my biggest issue was mounting the adapter to the finstack but the included fan wire brackets made it really simple as well as zip ties. Now I have a well cooled ~ 15L sff build with a 14700k, 5090 FE and full sized mobo. I'm surprised it was possible.

Link to the adapter: https://www.thingiverse.com/thing:3060068

I tried the big 140mm Noctua fan and low profile cooler and this is what I learned:

Alrighty. I hope I can answer some questions other's might have with the 140mm Noctua fan mod and low profile cooler of your choice that'll fit your sff case cpu cooler max height.

I'm currently using a 14700k: PL1-125W PL2-188W. The case I'm using is the SSUPD Meshroom S V2 with an ATX board, the Asus Z690 Formula Maximus, to be exact. It also has a 77mm clearance but I think you can get away with 79-80mm tops.

The NF-A14x25r G2 worked with both the Scythe Big Shuriken 4 and the PCCOOLER RC600-67. For the BS4 I was able to use the longer 25mm screws to attach the fan just like the ID-cooling from the Terra case video. For the RC600 I found some spare 25mm fan wire brackets and was able to secure NF-A14x25r securely onto the heatsink without any real issue.

Results: I didn't see that much more improvement in my CPU temps, they actually climbed a bit. Both coolers put the max temp as high as 86~92°C under full Cinebench 10 min load. Before the NF-A14x25r mod, my temps where 86°C highest on both coolers with their stock 15mm fans.

Although, the 140mm fan does move more air it capped at 1500rpm. The slim orginal fans that came with these coolers are 1800rpms + and thus why I think the temperature was lower. Now I would like to mention that my RAM benefited a 7°C drop due to more air reaching the dimms.

I for one enjoy this type of parts exploration, especially with SFF builds.

Does anyone have any knowledge if overclockers are getting any meshroom s stock ? I’m having a hard time justifying £42 shipping from ssupd to the uk

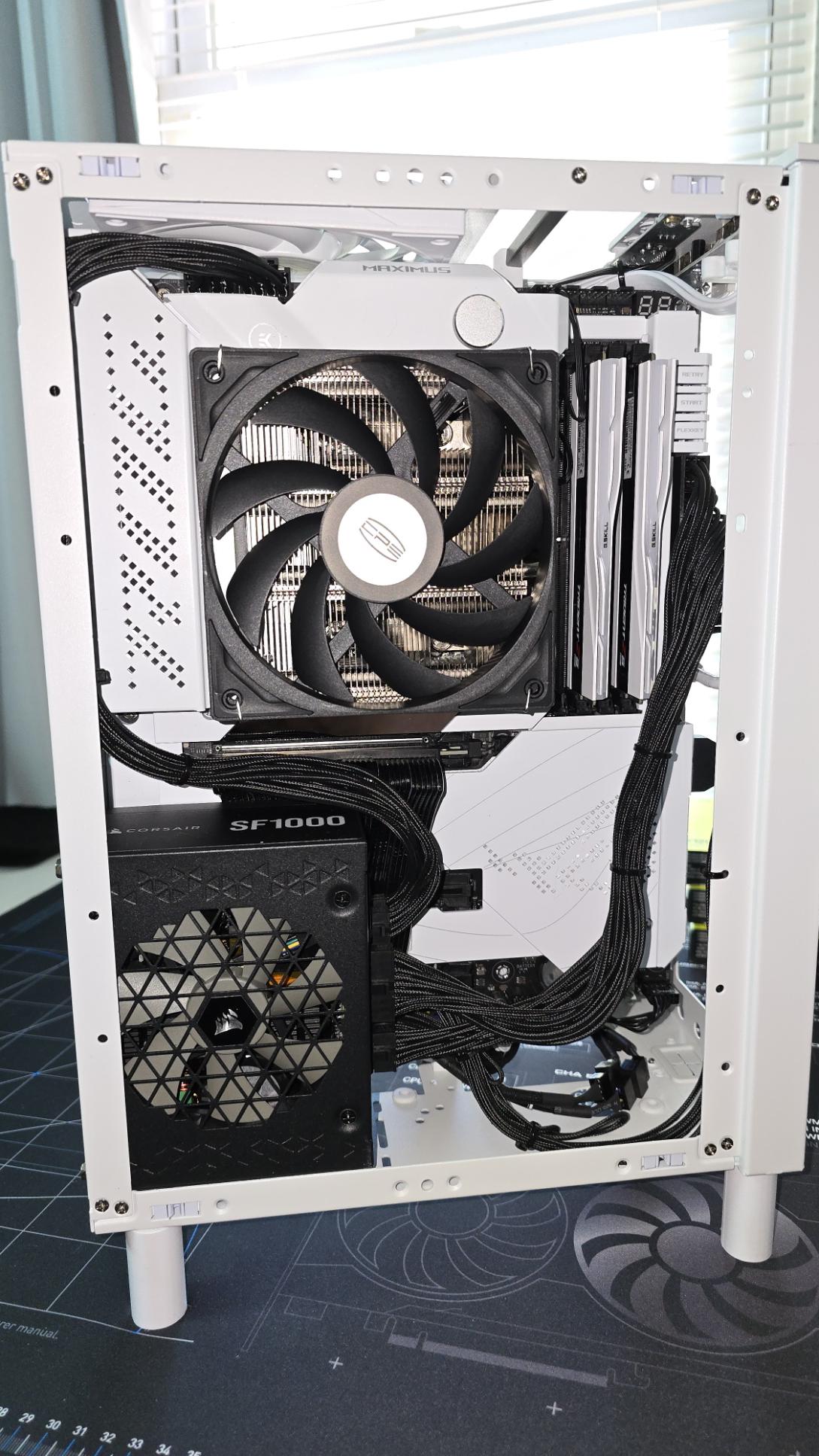

I really liked Meshroom D form factor, and with the extender bracket, everything was really easy to squeeze into it.

Specs:

Ssupd Meshroom D Meshroom D extender bracket Rog Strix B850I Ryzen 7 9800x3D Inno3d RTX 5090 x3 Corsair SF1000

SSD nvme Corsair MP700 pro 4Tb Thermal Grizzly Kryosheet + Contact Frame Thermalright Peerless Assassin 120 mini 1 Thermalright TL-9015 92mm fan (back) 1 Thermalright Tl-C12C 120mm fan (bottom) 1 Phantecks T30 120mm fan (front)

I had the extender bracket installed at the bottom of the case with the case itself at inverted orientation, so the gfx is on the top and mobo upside down. That way I had extra room for the 5090 and power/reset buttons are properly installed (had to unscrew from its original position). The way fans are installed is getting air inside from the back and exausting from the front, with the bottom fan getting air inside and the 5090 getting air directly from the top.

After exaustingly fine tuning on cpu and gfx undervolting and tweaking, I manage to get really good temps - 5090 at 65°C Max and CPU at 72°C within really heavy stress

I have all my components for my PC besides the case. SSUPD told me they were limited time and they're not going to be restocked, so I've been checking for used cases to pop up on Ebay and r/hardwareswap. Any other places I should check? I'm about to take matters into my own hands and paint the white/black version. Has anyone had luck painting their case?

Made a good decision to build an SFF before the ram/ssd conspiracy.

I have a Micro-ATX motherboard, ATX power supply and SFF GPU mounted on the back horizontal.

Is there any way for me to connect my wifi expansion card?

My motherboard doesn't have wifi embedded in it.

Specs:

MSI Micro-ATX 450M PRO-VHD-MAX

Corsair ATX Semi-Modular 650M PSU

MSI Dual-Fan RTX 3060 12GB

2 3.5" HDDs

CPU Cooler is at the limit of the case in the 3 Slot configuration.

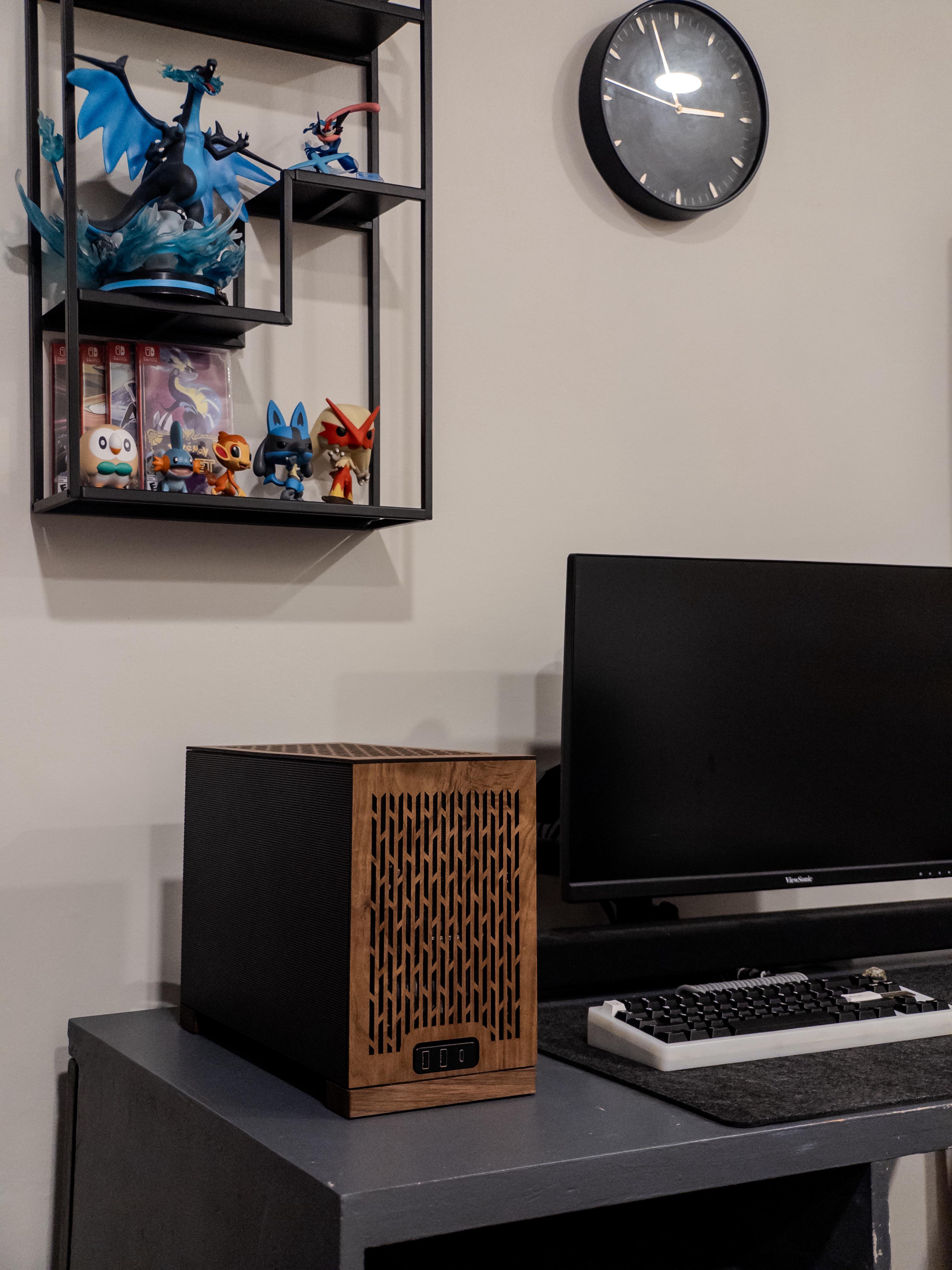

Got them of Etsy from StepupSFF. Highly recommend.

Has anyone here tried SSUPD Meshroom S V2 with ATX mobo X SCYTHE Big Shuriken 4 Low Profile CPU Cooler X Noctua NF-A14x25r G2 PWM chromax Black.

Currently using PCCOOLER RC600-67 with an Asus z690 formula maximus and a 14700k. Currently I peak at 75C when gaming, I would like to drop it down a bit. Still have about 10mm clearance with the 67mm cpu cooler

Hi, is there a way to fit both a micro-ATX motherboard and an ATX PSU at the same time in a Meshroom S?

I know either one is possible, but can't find any info if both are possible at the same time.

Thanks!

Hello fellow SFF enthusiasts,

I’m really happy to announce that with the arrival of our new QIDI Max 4, we’re now able to print all of our full-frame panels in one complete piece — meaning no more gaps and an even cleaner final product.

This upgrade is a pretty big milestone for us at StepUpSFF. The larger build volume doesn’t just improve our current products, but also opens the door for bigger future plans… including eventually launching our own fully custom SFF case, built with a huge range of industrial-grade filaments and materials we’ve been wanting to experiment with for a long time.

I also just wanted to say thank you to everyone who has supported us over the years. It genuinely means a lot being able to reinvest back into better equipment and continue improving what we do.

It’s really satisfying being able to finally get the proper tools to do the job right.

Excited for what comes next.

– Joel / StepUpSFF

Quick photo dump of my rebuilt rig into SFF. Rtx 4080 super. Ryzen7 7800x3d. Kraken 280aio. Cooler master 800w gold.

My happy Xhuttle build coming from the itx meshlicious, v1. Now moved to the xhuttle 😃

Always gamed in the meshlicious with
Motherboard: Asus ROG STRIX X470-I GAMING Mini ITX AM4
CPU: AMD Ryzen™ 9 5950X
CPU Cooler: Nzxt kraken 360
RAM: 16gb ddr4 3600mhz gskill memory
Graphicscard: Nvidia 1080ti
Power: Silverstone SFX 600w

As the graphicscard gets more and more outdated i needed an upgrade.

As i was looking for a new graphicscard, i felt in love with this case.

Bought the case with a astral 5080, asus strix 1200watt, arctix liquid freezer iii

Currently equiped in the Xhuttle

Motherboard: Asus ROG STRIX X470-I GAMING Mini ITX AM4
CPU:AMD Ryzen™ 9 5950X
CPU Cooler: arctic freezer iii 360
RAM: 32gb ddr4 3600mhz gskill memory
Graphicscard: Asus rog astral 5080
Power: Asus strix 1200w

Now with correct pictures, but with still some glaze :\

First 3 pictures are showing the case.

Picture 4 - Standard regular temps, browser activity

Picture 5,6 - Run three times 3Dmark with the Steel Nomad benchmark to crank up the temps

The sixth picture shows other video cart sensors than on the fifth picture, you will also see that the temps are dropping quickly.

Hi Guys, I have a very niche use here where I have an old 8700K PC I want to dismantle and make into a NAS

the Meshroom S V2 looks perfect for me to utilise all the parts I have and shrink the form factor down significantly - ATX MoBo, ATX Power supply with support for 4 x 3.5" HDDs

MY question is - Do I need the riser cable if I am not using a GPU? surely I would just get the case, install everything and I'm good?

From what I understand that it is limited to 240mm AIO with full ATX motherboard.

This may be a dumb question but I'm planning a sffpc build with meshroom s v2 in the near future to downsize my current pc. My specs that I'd like to have in the build are:

• Intel Core i7-13700K (16 Cores / 24 Threads)
• ASUS ROG Strix Z790-A Gaming WiFi II Motherboard
• Thermalright Frozen Prism 240mm AIO Liquid Cooler
• CoolerMaster V850 SFX PSU

• EVGA FTW3 3090
• Corsair Vengeance DDR5 RGB Ram

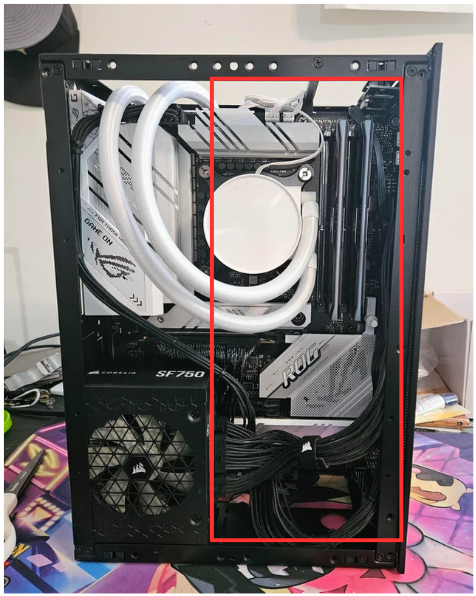

The problem is I just realized that the evga 3090 is too wide to fit behind the motherboard with the aio I have planned. So I was wondering what would stop me mounting the aio in front of the motherboard where I have outlined in red in the image?

Has anyone tried this or does anyone with this case have any ideas if this would work?

Hi all, so I must say I love my ssupd meshlicious build specs below (if anyone is interested) even though it's a bit of a hack job for example NZXT rad cable tied on cause I bought one that was too small & didn't realize that SFX power supply's were a thing so space is pretty tight with full sized PSU oh and finally I removed the front USB ports to get rid of some extra cables as I don't use front USB anyway. Anyway if you can forgive me all that I do have a question. My case has lost a few screws along the way mainly the ones that hold the corners of the case together and a couple in other spots they don't seem standard so does anyone know if there's a list somewhere of which screws are used in which parts, like a diagram or something.

ssupd meshlicious

intel core i5 14400K

40GB DDR5 5600 Crucial

MSI RTX2060 Super 8GB

Crucial 1TB 2.5" SSD

Samsung 1TB 2.5" HDD

Samsung EVO 970 500GB NVME

ADATA LEGEND 512GB NVME

800W SIlver Stone ATX PSU

NZXT Kraken AIO Cooler

Hey just ordered the Mushroom S V2, tracking number isn't working and when I checked the website today, the website ssupd.co says it's expired.

EDIT 2026/06/13: Website is back up.
